XM-B1B7-0204D
XR-B1B7-0204D ROHS

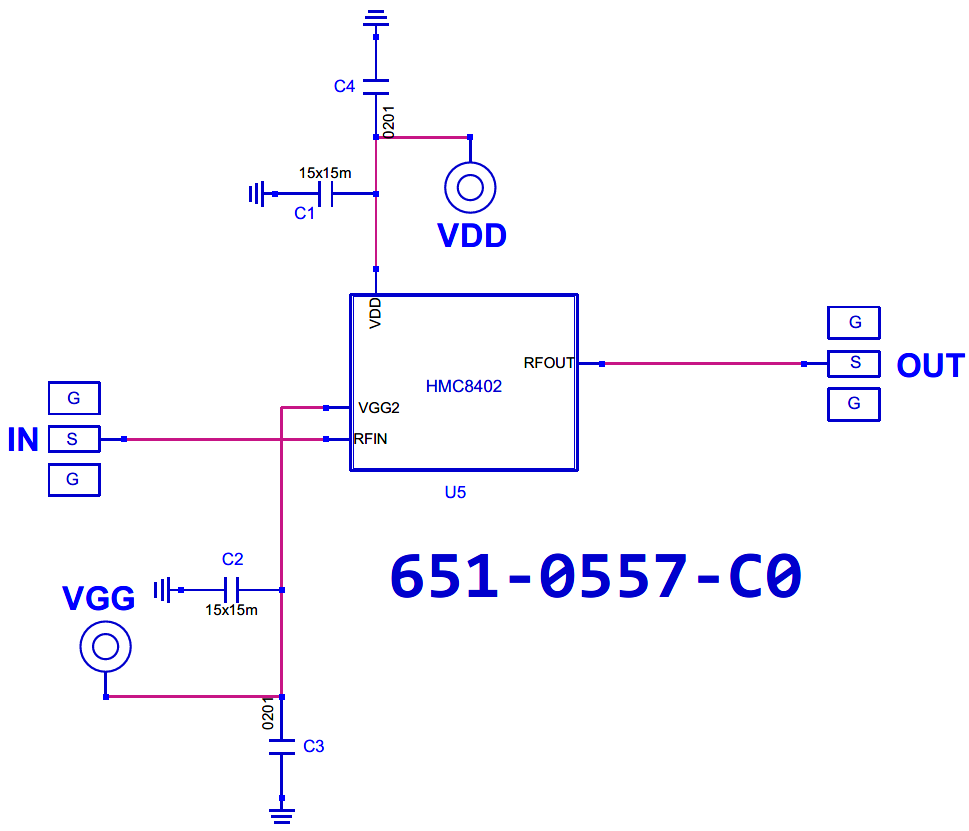

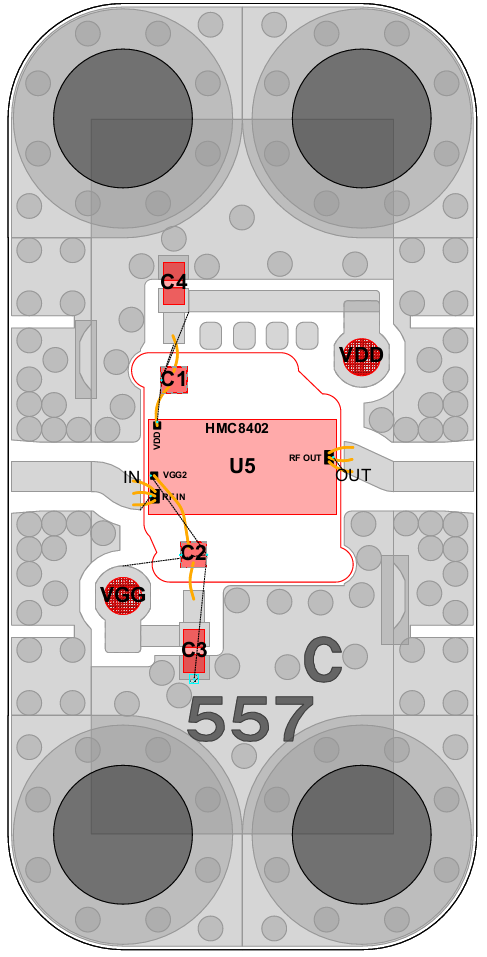

Amplifier, HMC8402 [PCB: 0557]
Recommended Bias Controller: XM-B1B8-0204D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8402

Low Freq

 N/A 2000 MHz

High Freq

 N/A 30000 MHz

Gain

 N/A 13.5 dB

NF

 N/A 2 dB

P1dB

 N/A 21.5 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 7 V

Current

 N/A 68 mA

ALL_ASSET

 N/A 1134P 1135M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +7.0V
2. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VDD to 0V

Note: VG2 = Open; If the gain control function is to be used, apply to VGG2 a voltage within the range of ?2 V to +2.6 V until the desired gain is achieved.

Part Number

 N/A XR-B1B7-0204D
