XM-B194-0404D
XR-B194-0404D ROHS

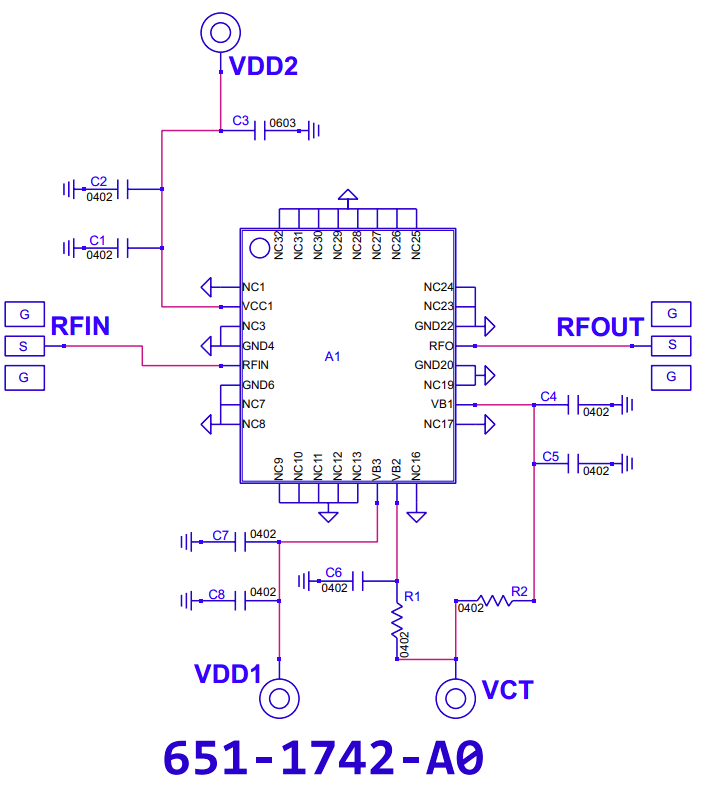

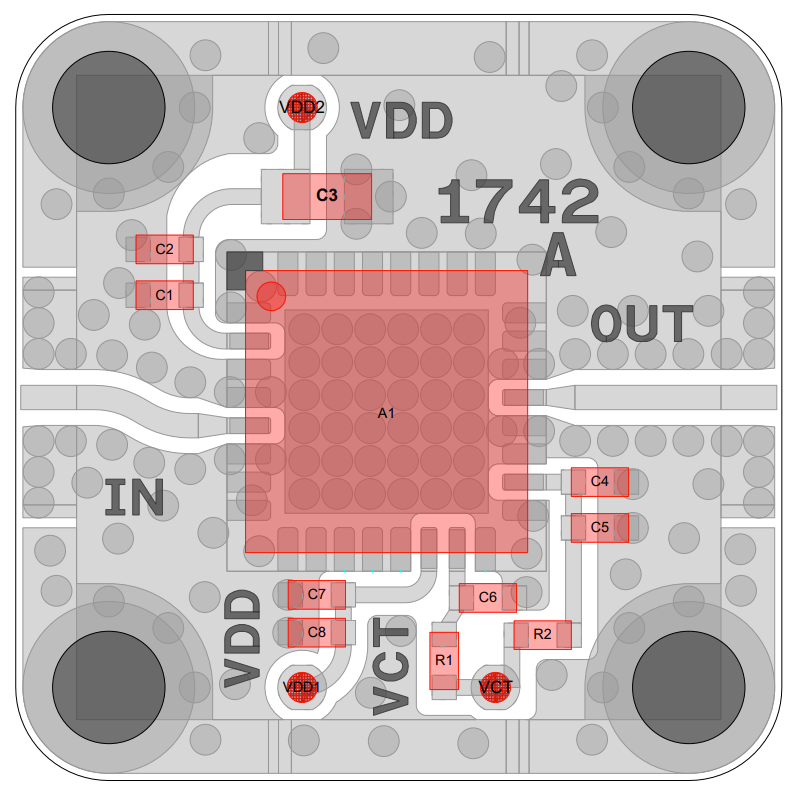

Amplifier, MAAL-011151 [PCB: 1742]

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-011151

Low Freq

 N/A 2000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 16 dB

NF

 N/A 5 dB

P1dB

 N/A 17.5 dBm

IP3

 N/A 19 dBm

Voltage

 N/A 5 V

Current

 N/A 60 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD1=VDD2 = +5.0V
2. VCT=+5V @ 2mA typ. (0V for OFF)
3. VB1 = ~+4V (IB1~0.4mA)
4. VB2 =~+3V (IB2=~1.4mA)
Verify IDD ~60mA
5. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Set VCT = 0V
3. Turn off VDD1,2

Part Number

 N/A XR-B194-0404D
