XM-A9H1-0808D
XR-A9H1-0808D ROHS

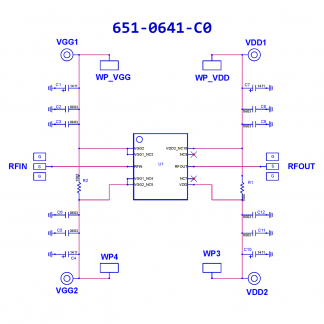

Amplifier, HMC1087F10 [PCB: 0641]
Recommended Bias Controller: XM-A9H2-0808D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1087F10

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 11 dB

IP3

 N/A 43 dBm

Voltage

 N/A 28 V

Current

 N/A 850 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -5.0V
2. Apply VDD = 28.0V
4. Adjust VGG more positive until IDQ reaches 850mA
Note: Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -5.0V
4. Adjust VDD to 0V
5. Adjust VGG to 0V

Part Number

 N/A XR-A9H1-0808D
