XM-A9G8-0604D
XR-A9G8-0604D ROHS

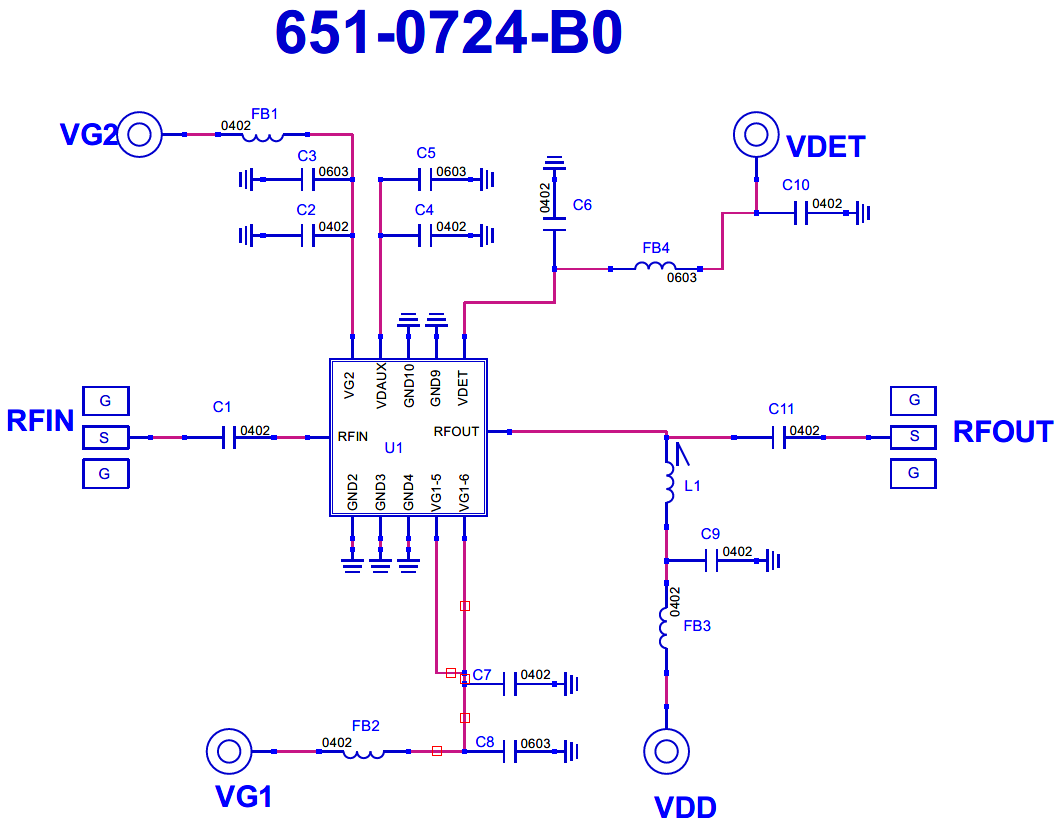

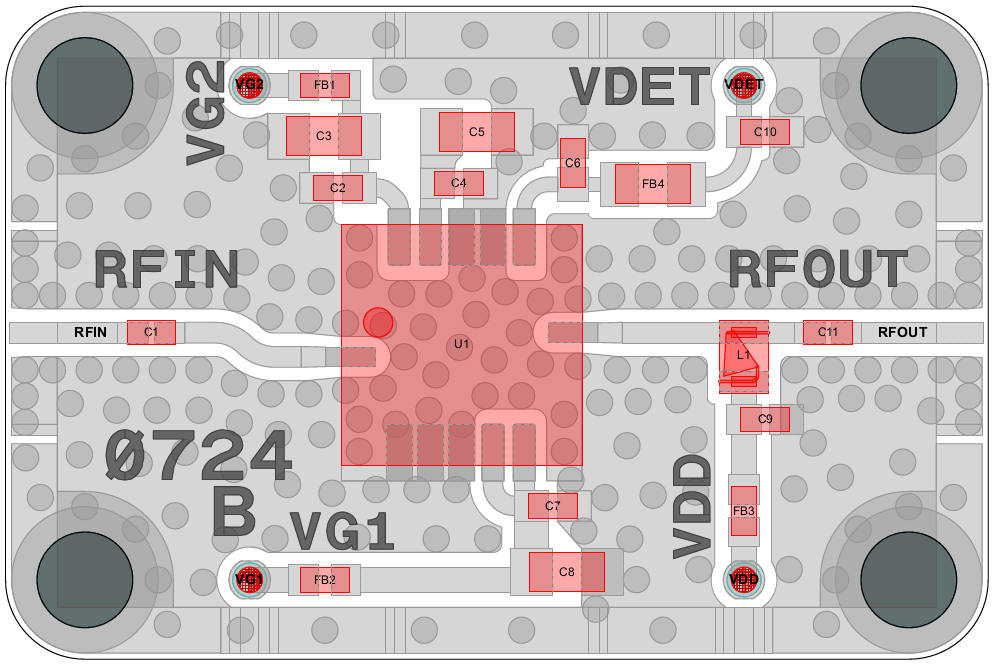

Amplifier, MAAM-011238-TR0100 [PCB: 0724]
Recommended Bias Controller: XM-A9G9-0604D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAM-011238-TR0100

Low Freq

 N/A 0.1 MHz

High Freq

 N/A 50000 MHz

Gain

 N/A 14 dB

NF

 N/A 7 dB

P1dB

 N/A 17 dBm

IP3

 N/A 25 dBm

Voltage

 N/A 4 V

Current

 N/A 125 mA

ALL_ASSET

 N/A 1177P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = 0V
2. Apply VDD = +6V
3. Adjust VGG more positive until IDQ reaches 135mA
Note: Typical VG1 = +0.65V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to 0V
3. Adjust VDD to 0V

Note: VG2 = Open; Dynamic gain control is available when operating in the linear gain region through the application of 0 to
1.6 V to VG
2.

Part Number

 N/A XR-A9G8-0604D
