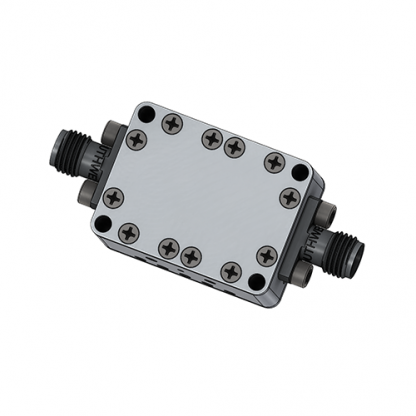

XM-A9G8-0604C-01
XR-A9G8-0604C-01 ROHS

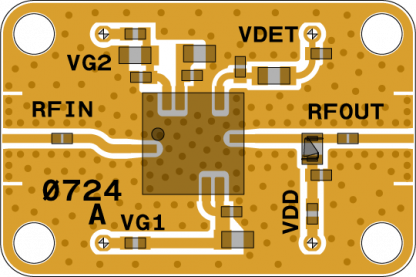

Amplifier, MAAM-011238-TR0100 [PCB: 0724]
Included Bias Controller: XM-A9G9-0604D
Product Page |
N/A Macom |
Spec Sheet |
N/A MAAM-011238-TR0100 |
Low Freq |
N/A 0.1 MHz |
High Freq |
N/A 50000 MHz |
Gain |
N/A 14 dB |
NF |
N/A 7 dB |
P1dB |
N/A 17 dBm |
IP3 |
N/A 25 dBm |
Voltage |
N/A 4 V |
Current |
N/A 125 mA |
ALL_ASSET |
N/A 1177P |
Connector Series |
N/A 2.4mm |
Part Number |
N/A XR-A9G8-0604C-01 |
