XM-A831-0404D
XR-A831-0404D ROHS

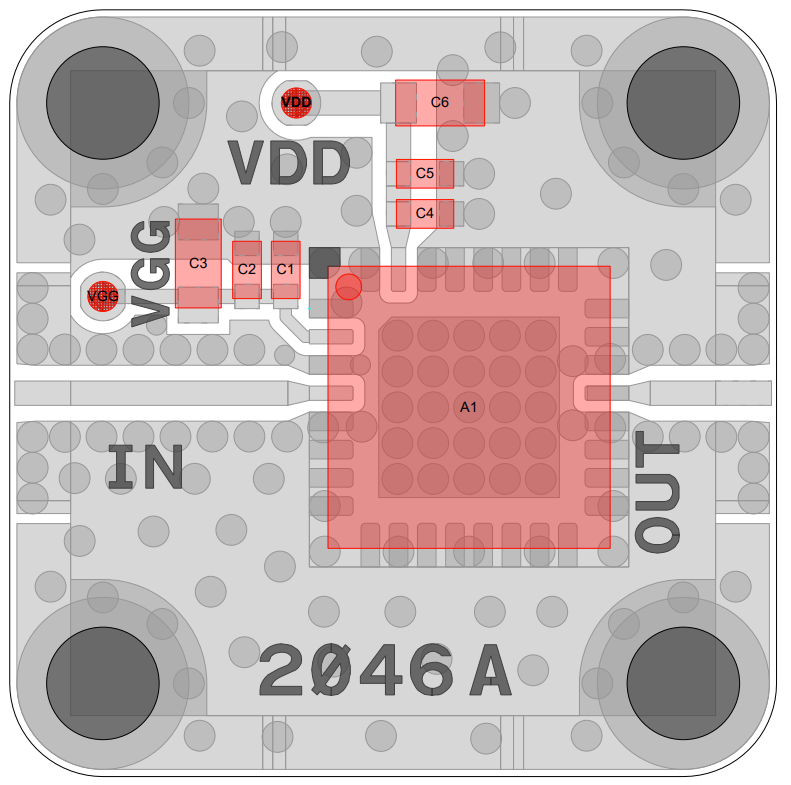

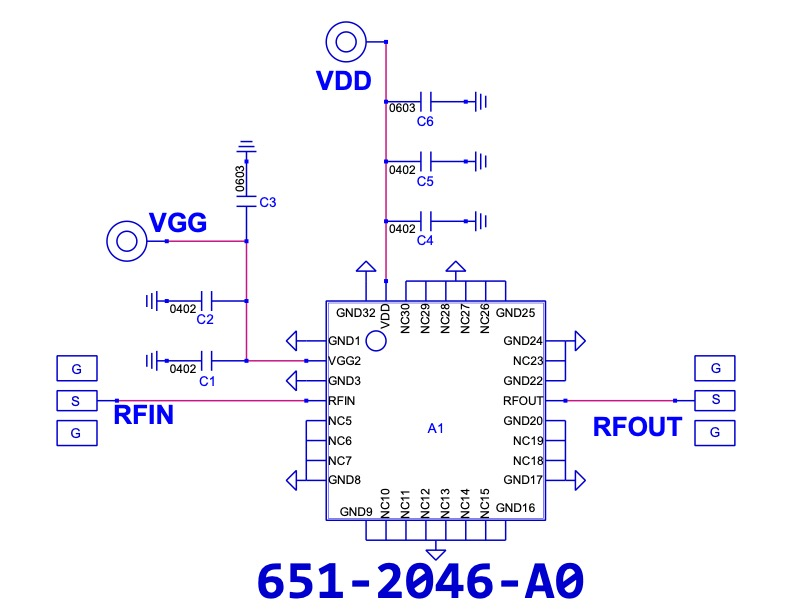

Amplifier, ADL9006ACGZN [PCB: 2046]
Recommended Bias Controller: XM-B1C4-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL9006ACGZN

Low Freq

 N/A 2000 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 15.5 dB

NF

 N/A 2.5 dB

P1dB

 N/A 20 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 4 V

Current

 N/A 53 mA

N/A

Bias Instruction

 N/A

Note: VGG=Gain CTL, Default=open, can be adj from -2V to +2.6V

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~53mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A831-0404D
