XM-A7K6-0404D
XR-A7K6-0404D ROHS

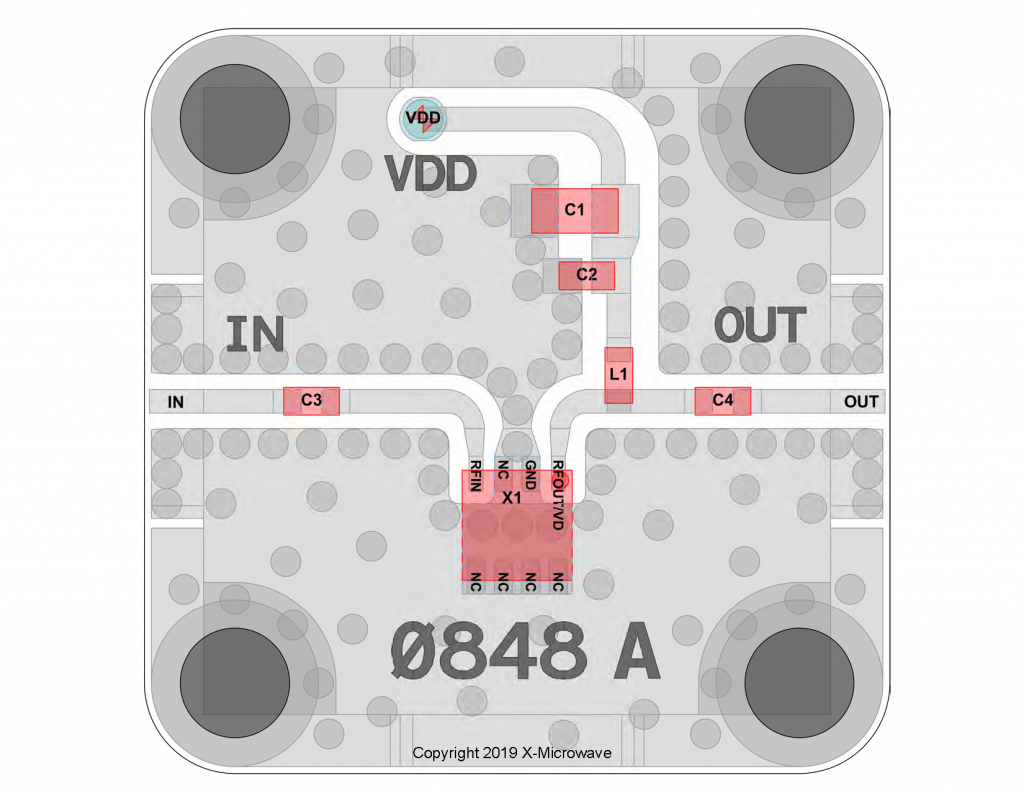

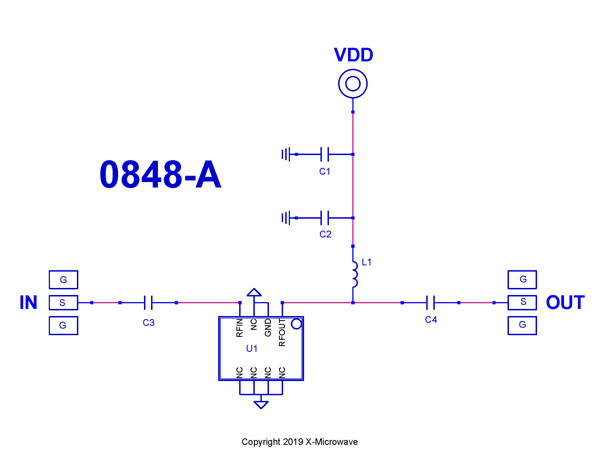

Amplifier, SGL0622Z [PCB: 0848]
Recommended Bias Controller: XM-A2J8-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A SGL0622Z

Low Freq

 N/A 5 MHz

High Freq

 N/A 4000 MHz

Gain

 N/A 28.6 dB

NF

 N/A 1.4 dB

P1dB

 N/A 1 dBm

Voltage

 N/A 3.3 V

Current

 N/A 10.5 mA

ALL_ASSET

 N/A 1205P 1206M 1207M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.3V
Verify IDD ~30mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A7K6-0404D
