XM-A7C7-0404D
XR-A7C7-0404D ROHS

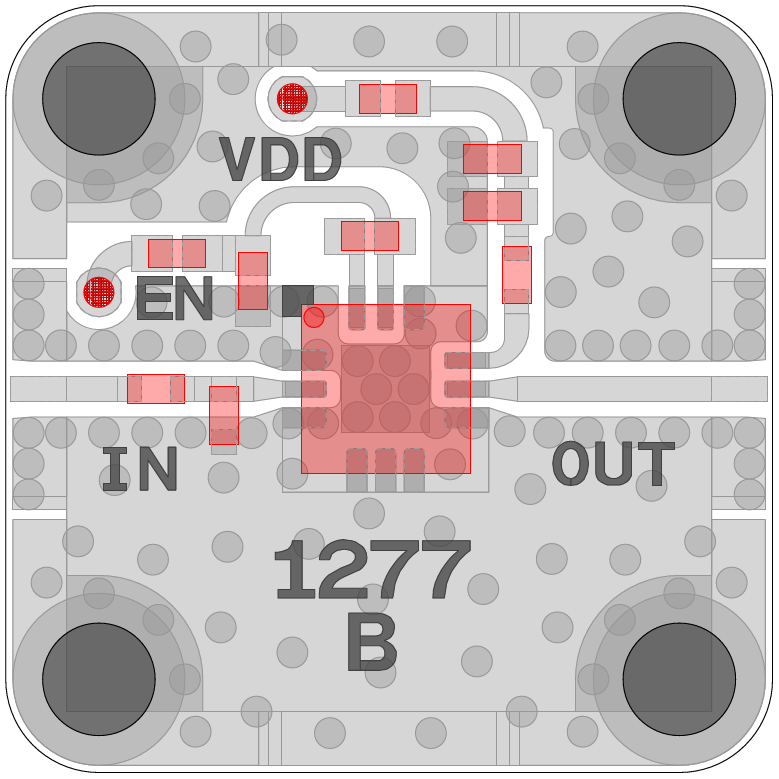

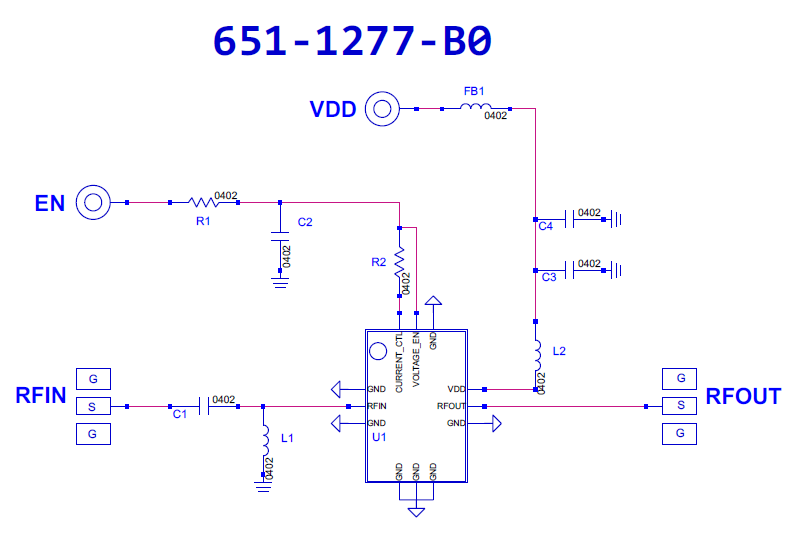

Amplifier, TSS-53LNB+ [PCB: 1277]
Recommended Bias Controller: XM-B817-0404D-SP

Configurations

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A TSS-53LNB+

Low Freq

 N/A 500 MHz

High Freq

 N/A 5000 MHz

Gain

 N/A 21.7 dB

NF

 N/A 1.4 dB

P1dB

 N/A 21 dBm

IP3

 N/A 33.9 dBm

Voltage

 N/A 5 V

Current

 N/A 82 mA

ALL_ASSET

 N/A 1311P 1312M 1313M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
2. Apply EN = 5.0V
Verify IDD ~82mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Set EN to 0V
3. Set VDD to 0V

Part Number

 N/A XR-A7C7-0404D
