XM-A755-0304D
XR-A755-0304D ROHS

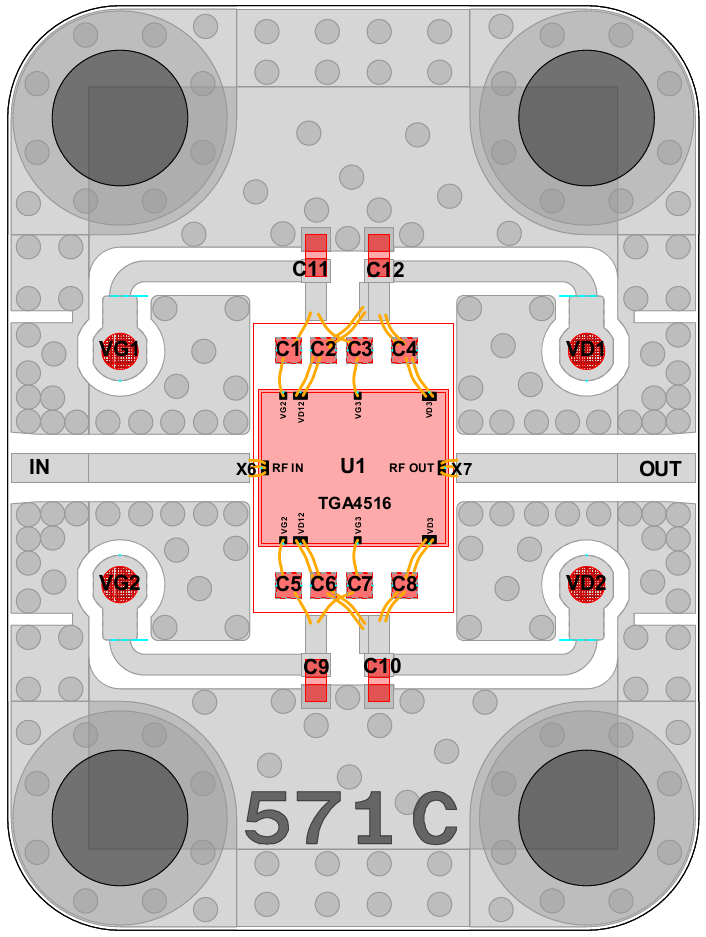

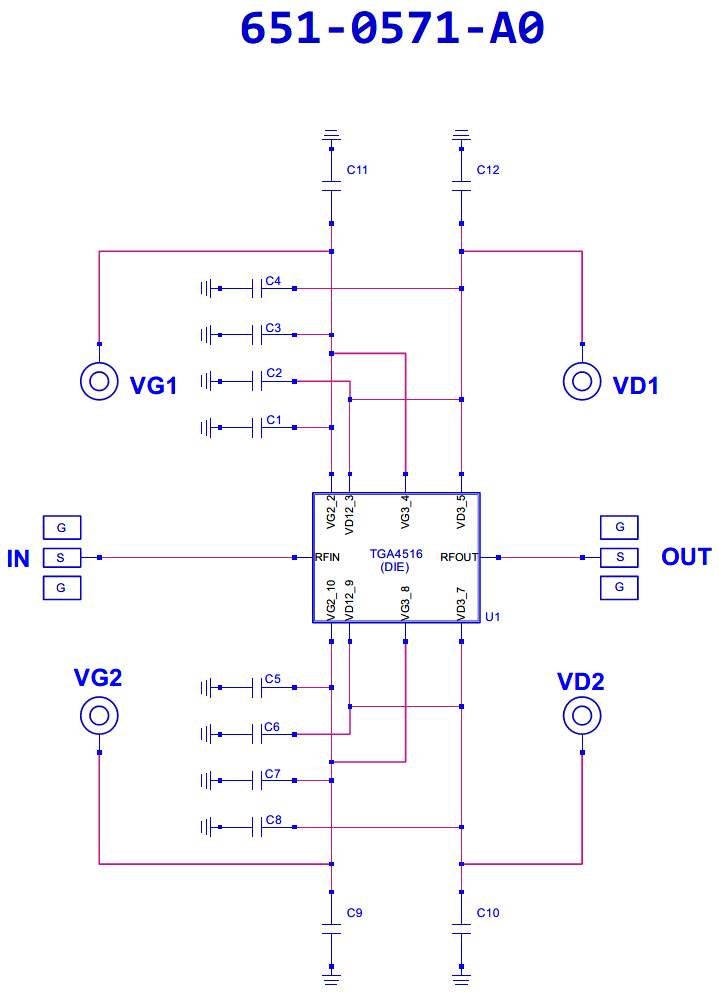

Amplifier, TGA4516 [PCB: 0571]
Recommended Bias Controller: XM-A756-0304D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA4516

Low Freq

 N/A 30000 MHz

High Freq

 N/A 40000 MHz

Gain

 N/A 18 dB

Voltage

 N/A 6 V

Current

 N/A 1050 mA

ALL_ASSET

 N/A 1145P 1146M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +6.0V
Verify IDD ~1050mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A755-0304D
