XM-A6K4-0804D
XR-A6K4-0804D ROHS

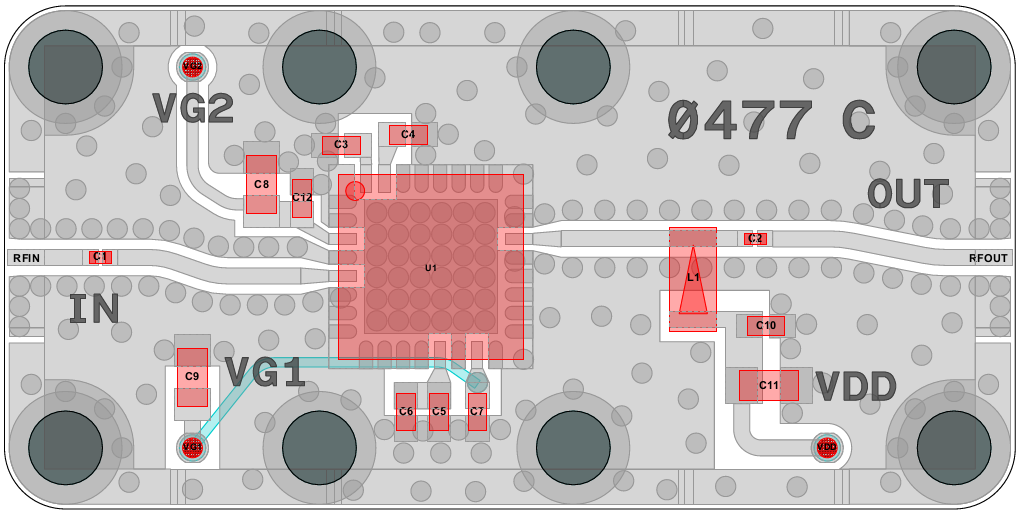

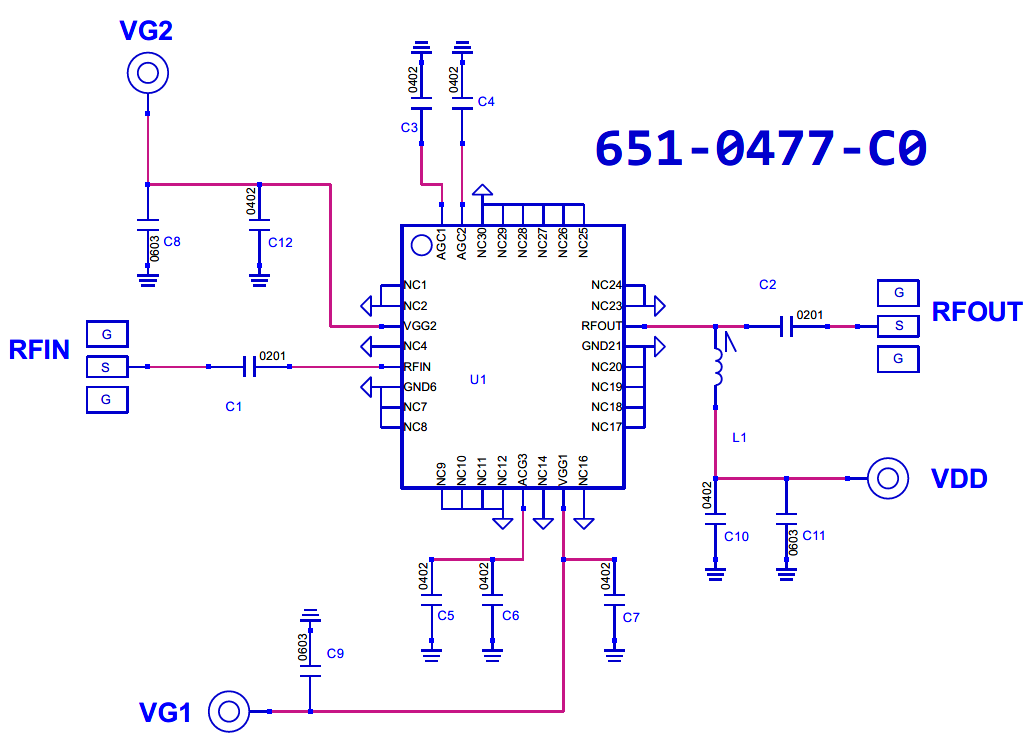

Amplifier, HMC659LC5 [PCB: 0477]
Recommended Bias Controller: XM-A6K3-0804D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC659LC5

Low Freq

 N/A 50 MHz

High Freq

 N/A 15000 MHz

Gain

 N/A 19 dB

NF

 N/A 2.5 dB

P1dB

 N/A 27.5 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 8 V

Current

 N/A 300 mA

ALL_ASSET

 N/A 1113P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = +8.0V
3. Apply VG2 = +3.0V
4. Adjust VG1 more positive until IDQ reaches 300mA
Note: VG1 ~ -0.8V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-A6K4-0804D
