XM-A6F1-0404D
XR-A6F1-0404D ROHS

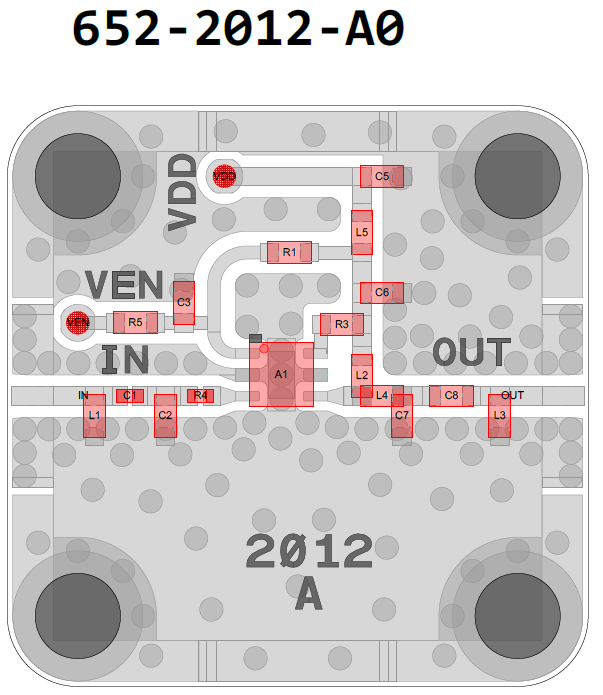

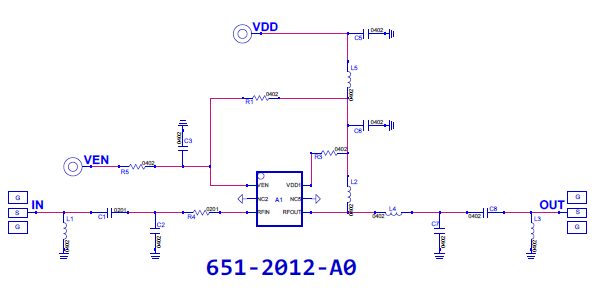

Amplifier, GRF2243 [PCB: 2012]

Product Page

 N/A Guerrilla RF

Spec Sheet

 N/A GRF2243

Low Freq

 N/A 400 MHz

High Freq

 N/A 5000 MHz

Gain

 N/A 19.7 dB

NF

 N/A 0.75 dB

P1dB

 N/A 12 dBm

IP3

 N/A 23 dBm

Voltage

 N/A 2.7 V

Current

 N/A 8 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +3.3V
2. Apply VEN = >1.8V (<0.2V for OFF)
Note:
Verify IDD ~ 15mA

Power-down Sequence
1. Adjust VEN to 0V
2. Adjust VDD to 0V

Part Number

 N/A XR-A6F1-0404D
