XM-A6E8-0804D
XR-A6E8-0804D ROHS

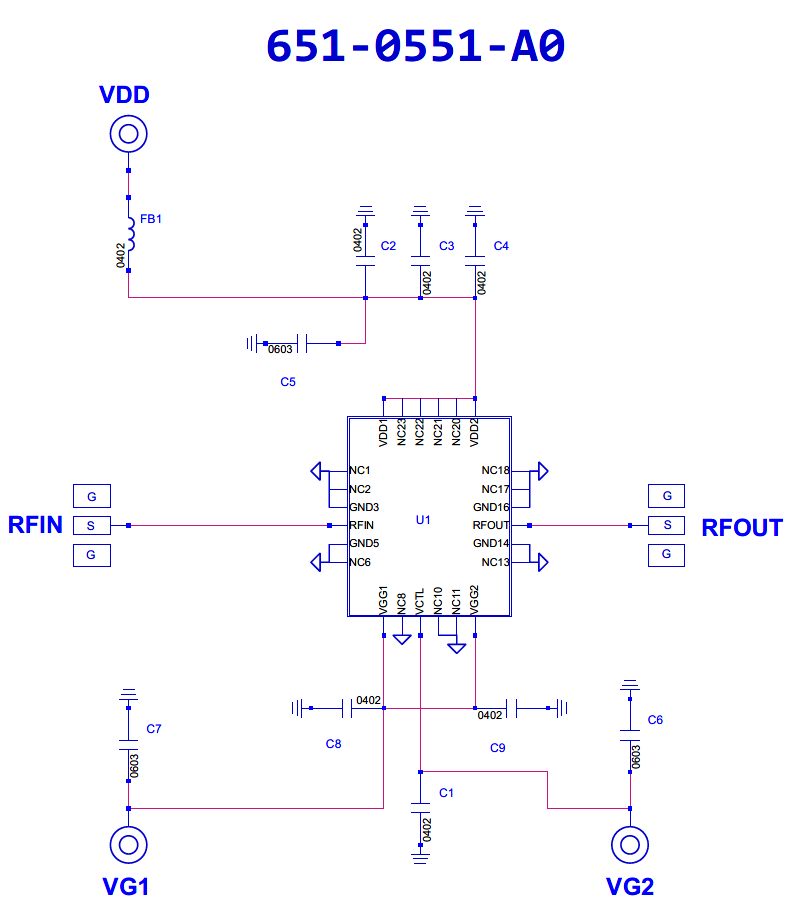

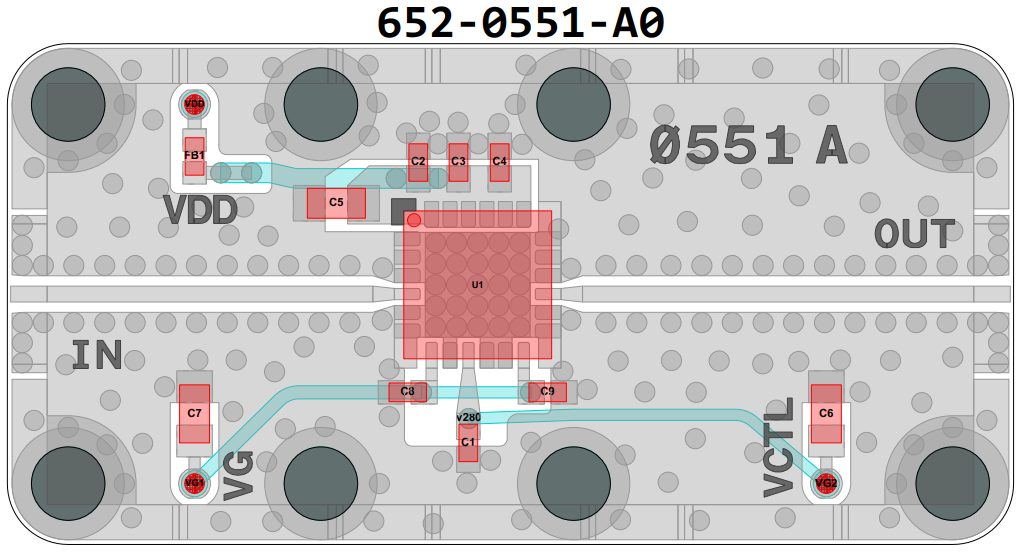

Amplifier, HMC996LP4E [PCB: 0551]
Recommended Bias Controller: XM-A752-0804D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC996LP4E

Low Freq

 N/A 5000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 18.5 dB

NF

 N/A 2.5 dB

P1dB

 N/A 22 dBm

IP3

 N/A 34 dBm

Voltage

 N/A 5 V

Current

 N/A 120 mA

ALL_ASSET

 N/A 1132P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG= -2.0V
2. Apply VDD = +5.0V
3. Apply Vctrl = -4.5V
4. Adjust VG more positive until IDQ reaches 120mA
Note: VG should not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -2.0V
3. Adjust VDD to 0V
4. Adjust VG to 0V
5. Adjust Vctrl to 0V

Part Number

 N/A XR-A6E8-0804D
