XM-A6B6-0604D
XR-A6B6-0604D ROHS

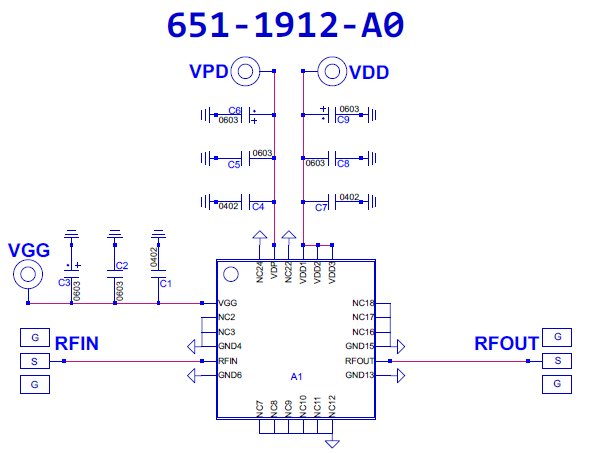

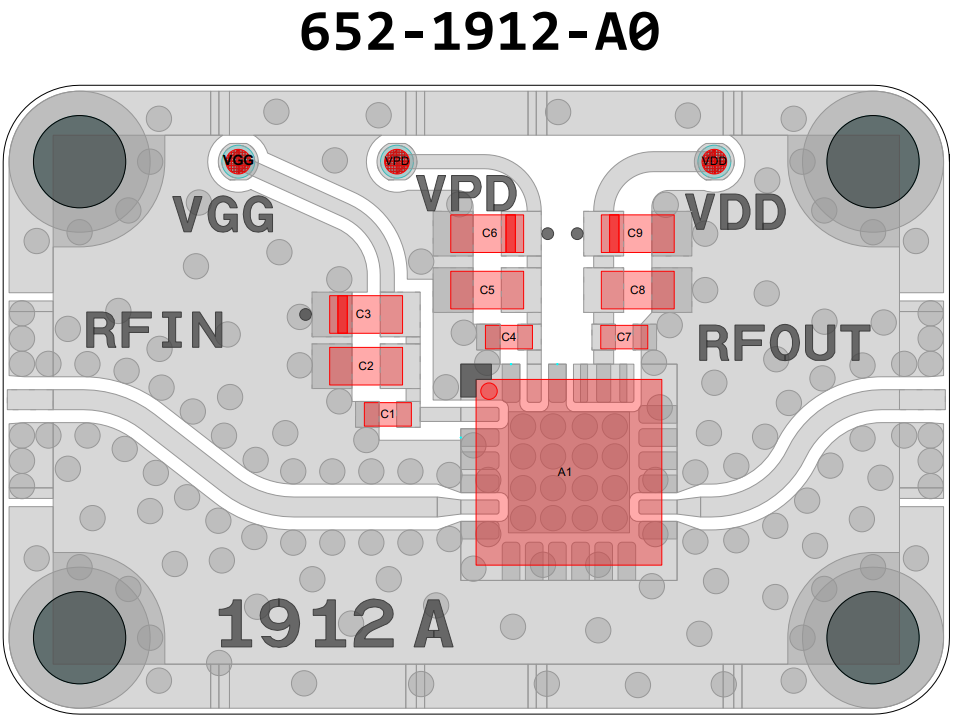

Amplifier, HMC608LC4 [PCB: 1912]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC608LC4

Low Freq

 N/A 9500 MHz

High Freq

 N/A 11500 MHz

Gain

 N/A 29.5 dB

NF

 N/A 6 dB

P1dB

 N/A 27 dBm

IP3

 N/A 33 dBm

Voltage

 N/A 5 V

Current

 N/A 310 mA

ALL_ASSET

 N/A 1372P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -3.0V
2. Apply VDD = +5.0V
3. Apply VPD = 0V
4. Adjust VGG more positive until IDQ reaches 310mA
Note: VGG ~ -2.6V, Do not exceed 0.0V
5. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -3.0V
3. Adjust VPD to 0V
4. Adjust VDD to 0V
5. Adjust VGG to 0V

Part Number

 N/A XR-A6B6-0604D
