XM-A6A5-0404D
XR-A6A5-0404D ROHS

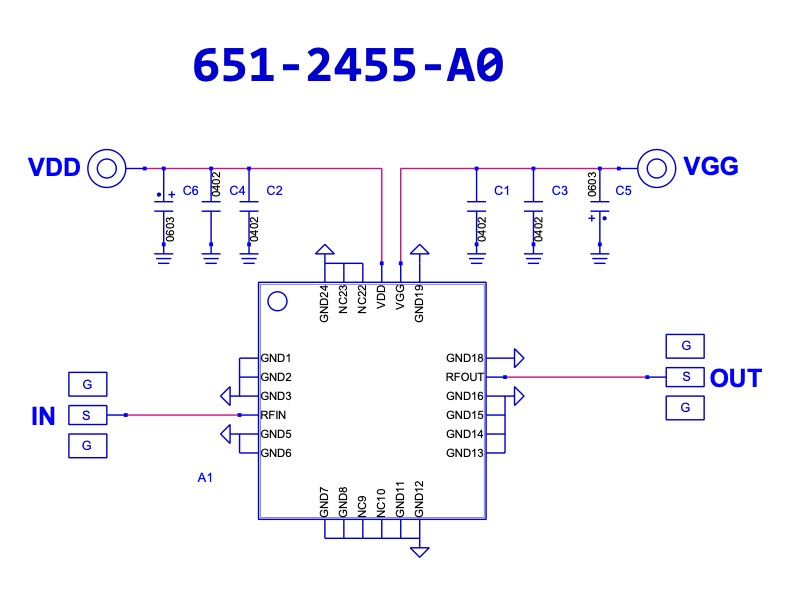

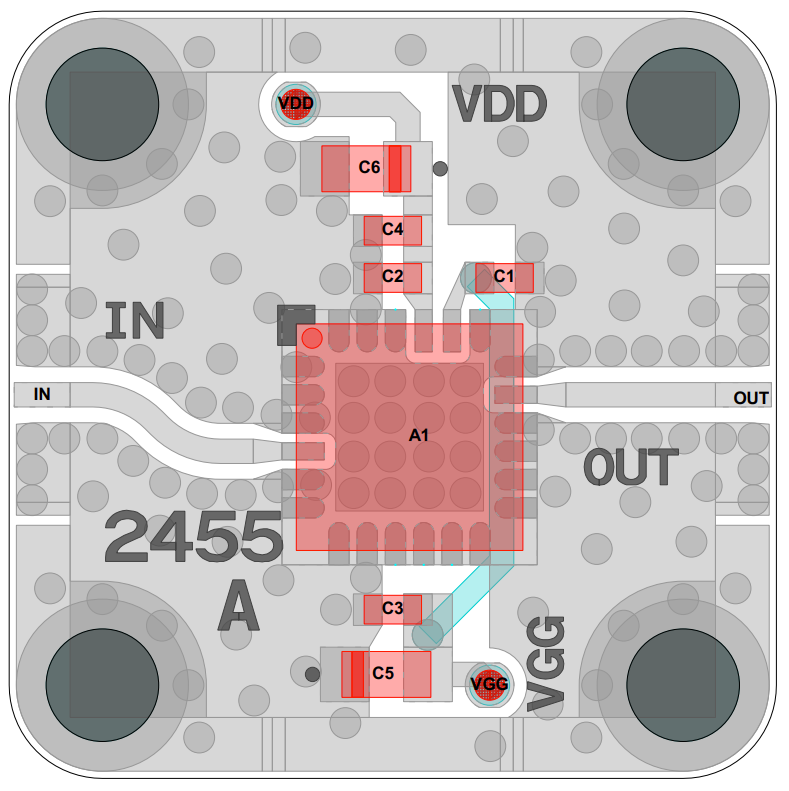

Amplifier, HMC504LC4B [PCB: 2455]
Recommended Bias Controller: XM-D3K9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC504LC4B

Low Freq

 N/A 14000 MHz

High Freq

 N/A 27000 MHz

Gain

 N/A 19 dB

NF

 N/A 2.2 dB

P1dB

 N/A 17 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 4 V

Current

 N/A 90 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -1.7V
2. Apply VDD = 4.0V
3. Adjust VG more positive until IDQ reaches 90mA
Note: Typ is -0.3V. VG should not exceed 0.0V.
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -1.7V
3. Adjust VDD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-A6A5-0404D
