XM-A6A3-0604D
XR-A6A3-0604D ROHS

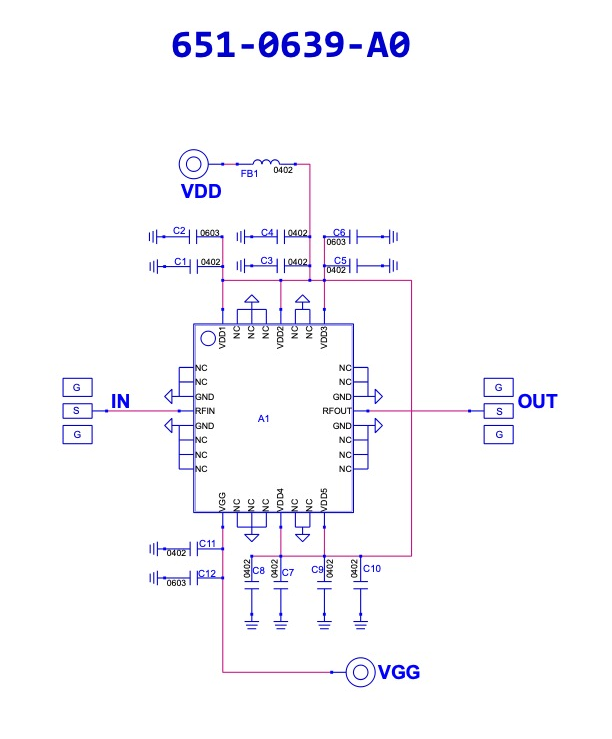

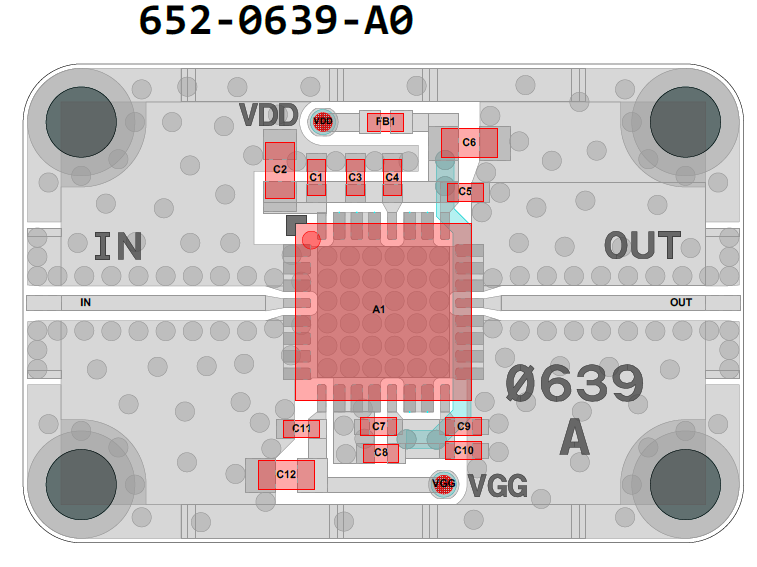

Amplifier, HMC487LP5E [PCB: 0639]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC487LP5E

Low Freq

 N/A 9000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 20 dB

NF

 N/A 9 dB

P1dB

 N/A 32 dBm

IP3

 N/A 36 dBm

Voltage

 N/A 7 V

Current

 N/A 1300 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 7.0V
3. Adjust VGG more positive until IDQ reaches 1300mA
Note: -0.3V typ. Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A6A3-0604D
