XM-A6A1-0804D
XR-A6A1-0804D ROHS

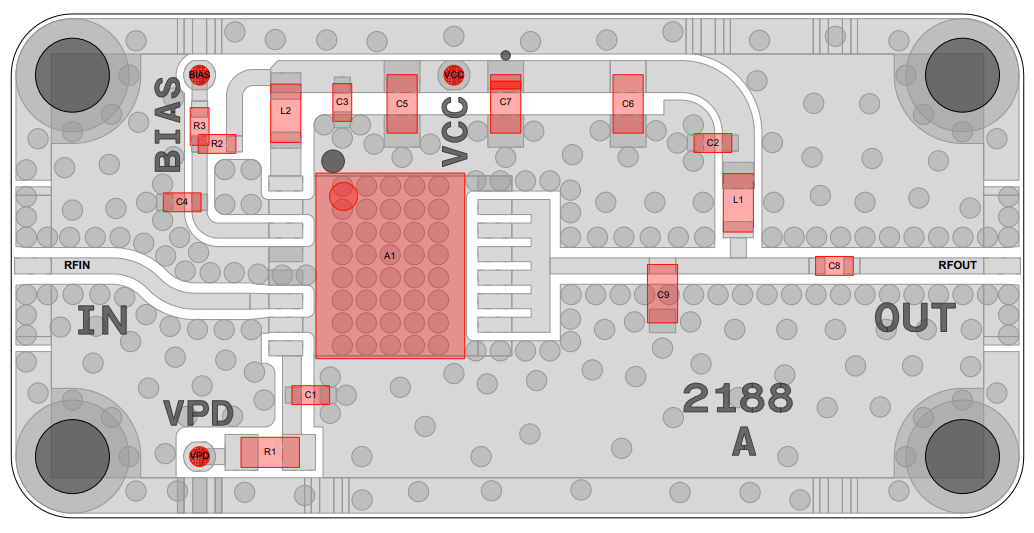

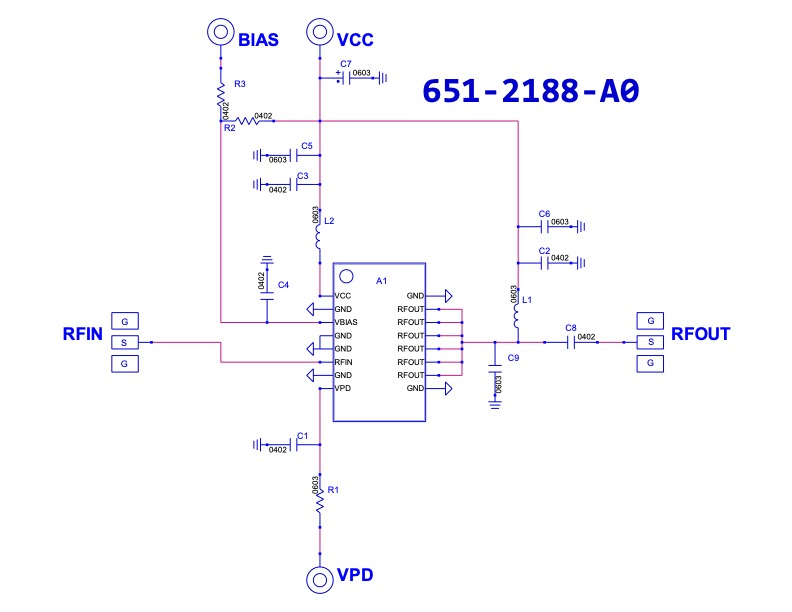

Amplifier, HMC457QS16GE [PCB: 2188]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC457QS16GE

Low Freq

 N/A 1700 MHz

High Freq

 N/A 2200 MHz

Gain

 N/A 27 dB

NF

 N/A 6 dB

P1dB

 N/A 29 dBm

IP3

 N/A 45 dBm

Voltage

 N/A 5 V

Current

 N/A 500 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +5V
2. Apply VPD = +5V (@4mA)
3. Apply VBIAS = +5V (@10mA)
5. Verify ICC ~ 510mA
6. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Remove VPD
3. Remove VBIAS
4. Remove VCC

Part Number

 N/A XR-A6A1-0804D
