XM-A679-0404D
XR-A679-0404D ROHS

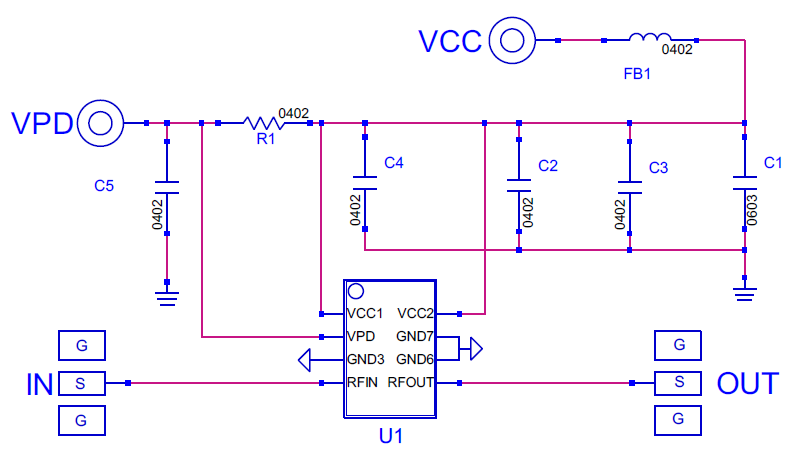

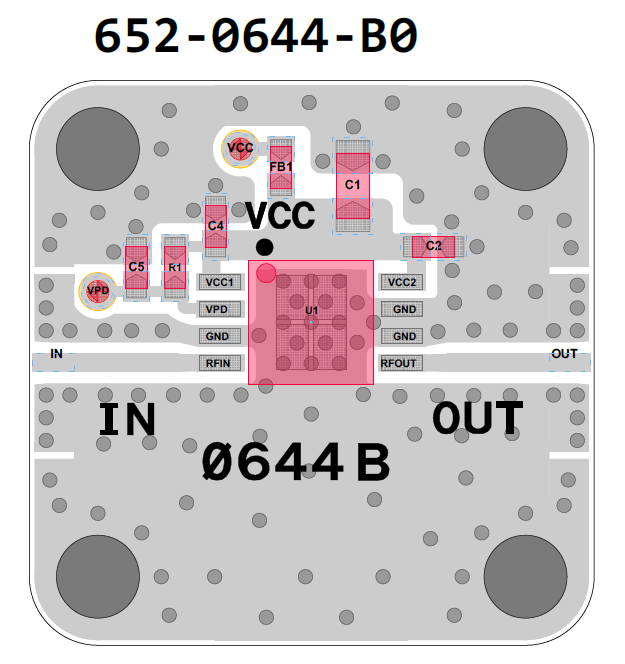

Amplifier, HMC407MS8GE [PCB: 0644]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC407MS8GE

Low Freq

 N/A 5000 MHz

High Freq

 N/A 7000 MHz

Gain

 N/A 15 dB

NF

 N/A 5.5 dB

P1dB

 N/A 25 dBm

IP3

 N/A 37 dBm

Voltage

 N/A 5 V

Current

 N/A 230 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +5V
Verify ICC ~230mA
2. Apply VPD = +5V @7mA (0V for OFF)
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VPD
3. Turn off VCC

Part Number

 N/A XR-A679-0404D
