XM-A675-0404D
XR-A675-0404D ROHS

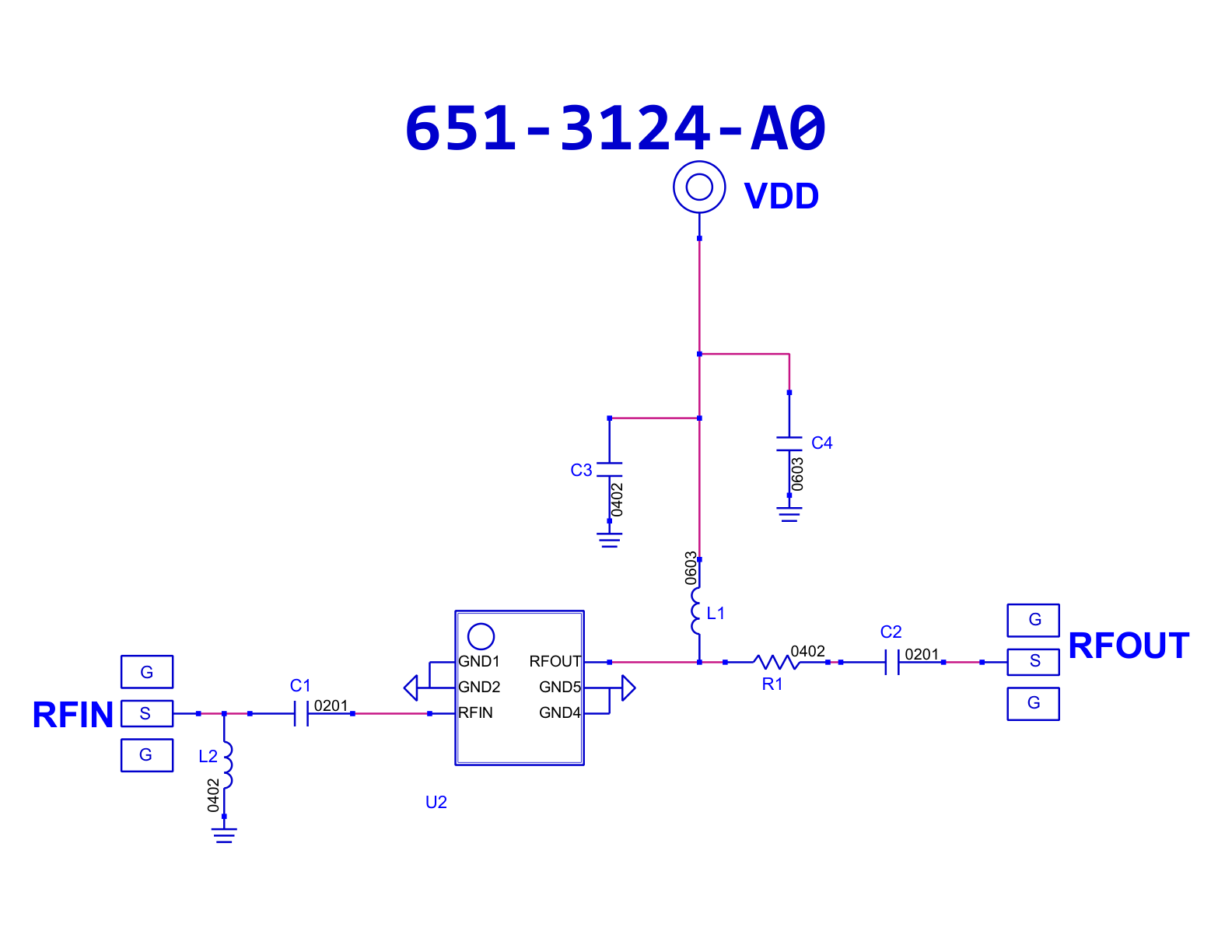

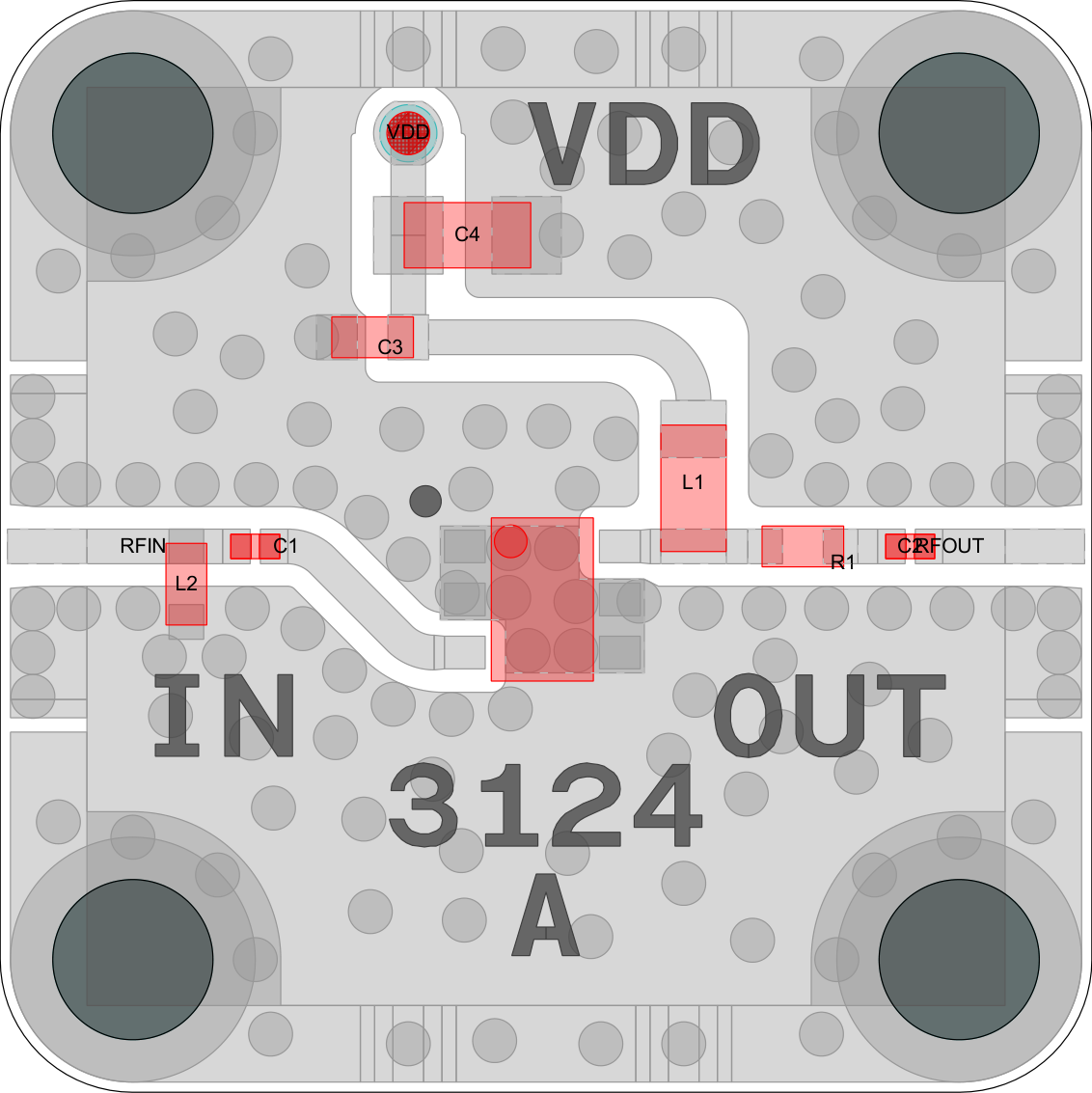

Amplifier, HMC374SC70E [PCB: 3124]
Recommended Bias Controller: XM-A2J8-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC374SC70E

Low Freq

 N/A 300 MHz

High Freq

 N/A 3000 MHz

Gain

 N/A 15 dB

NF

 N/A 1.6 dB

P1dB

 N/A 17 dBm

IP3

 N/A 33.5 dBm

Voltage

 N/A 3.3 V

Current

 N/A 75 mA

ALL_ASSET

 N/A 1111P 1112M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.3V
Verify IDD ~75mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A675-0404D
