XM-A641-0804D
XR-A641-0804D ROHS

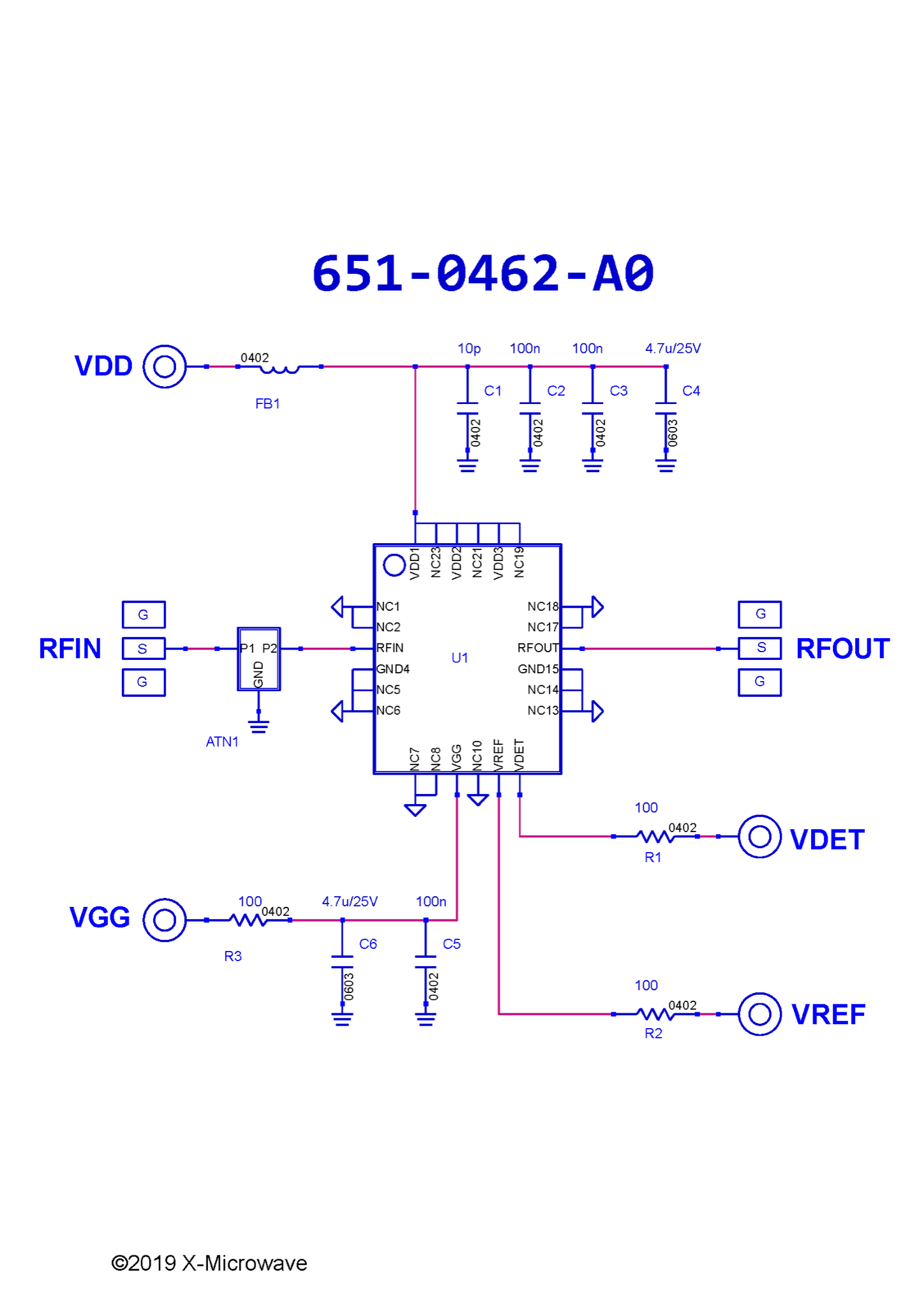

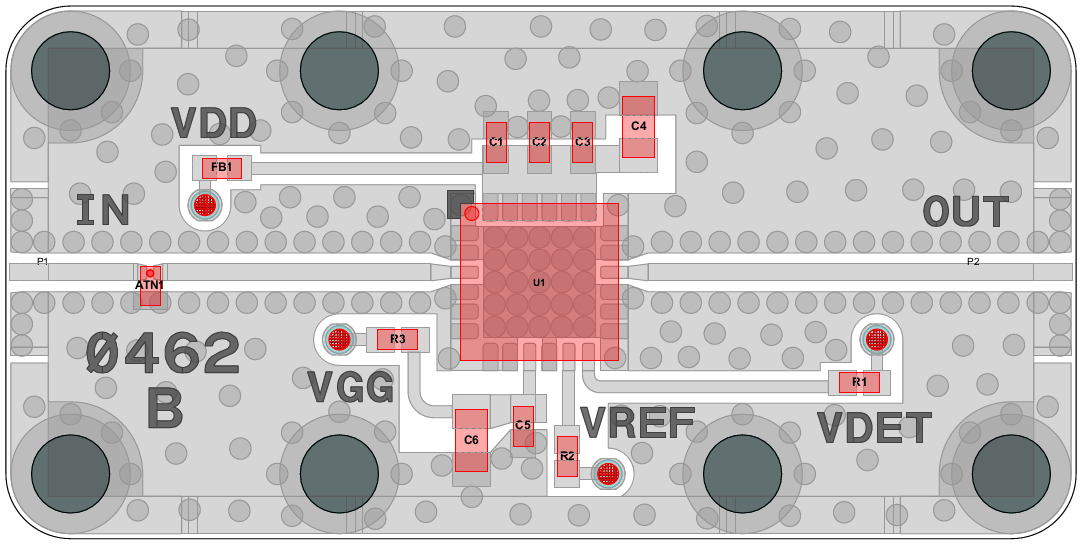

Amplifier, HMC1082LP4E [PCB: 0462]
Recommended Bias Controller: XM-A7P7-0804D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1082LP4E

Low Freq

 N/A 5500 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 22 dB

P1dB

 N/A 24 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 4 V

Current

 N/A 220 mA

ALL_ASSET

 N/A 1108P 1109M 1110M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 5.0V
3. Adjust VGG more positive until IDQ reaches 220mA
Note: VGG ~ -TBDV, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A641-0804D
