XM-A626-0404D
XR-A626-0404D ROHS

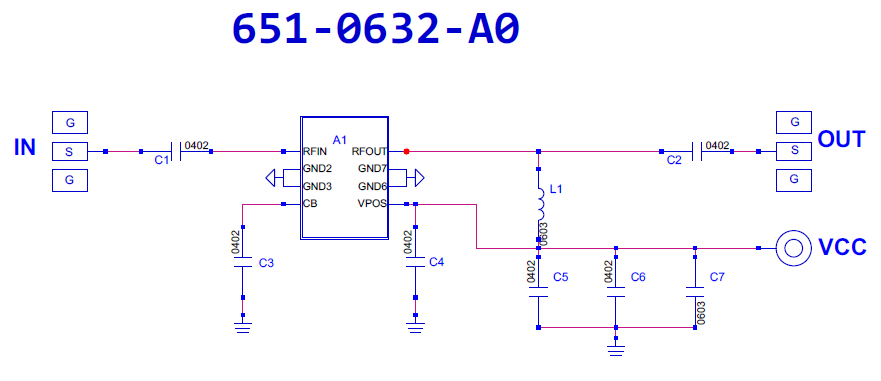

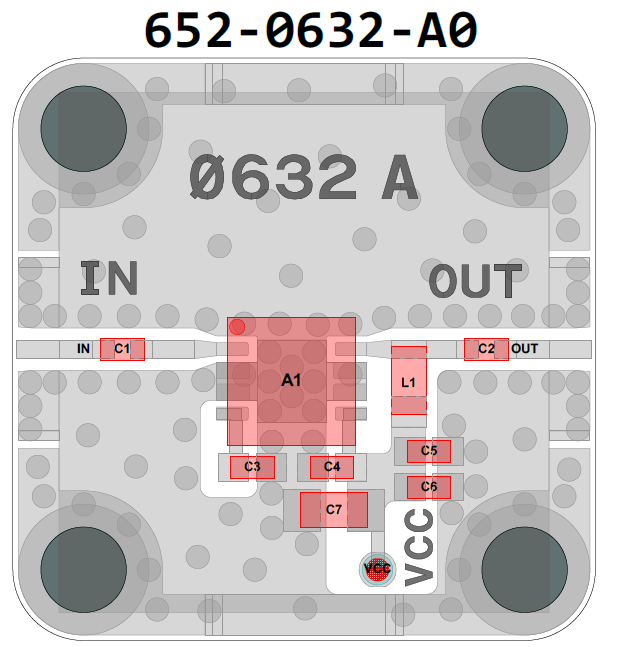

Amplifier, ADL5541ACPZ [PCB: 0632]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADL5541ACPZ

Low Freq

 N/A 20 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 15.2 dB

NF

 N/A 3.5 dB

P1dB

 N/A 19.7 dBm

IP3

 N/A 40.8 dBm

Voltage

 N/A 5 V

Current

 N/A 90 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~90mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A626-0404D
