XM-A5U4-0404D
XR-A5U4-0404D ROHS

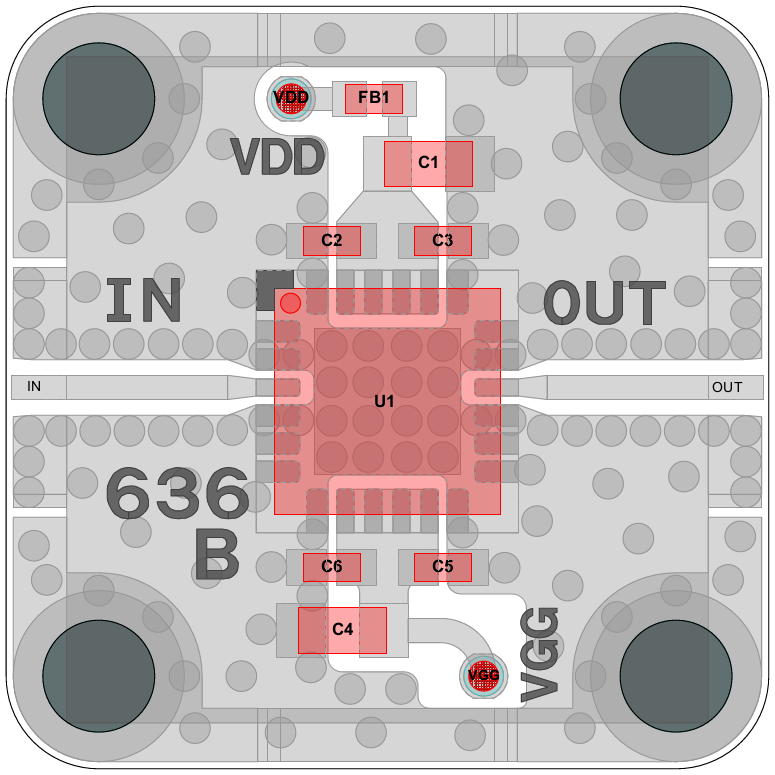

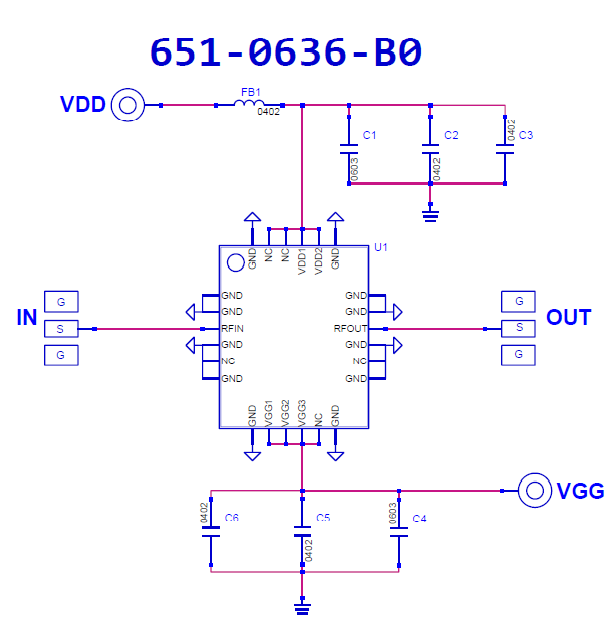

Amplifier, HMC752LC4 [PCB: 0636]

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC752LC4

Low Freq

 N/A 24000 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 25 dB

NF

 N/A 2.5 dB

P1dB

 N/A 13 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 3 V

Current

 N/A 70 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 3.0V
3. Adjust VGG more positive until IDQ reaches 70mA
Note: VGG ~ --0.6V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A5U4-0404D
