XM-A5T5-0804D
XR-A5T5-0804D ROHS

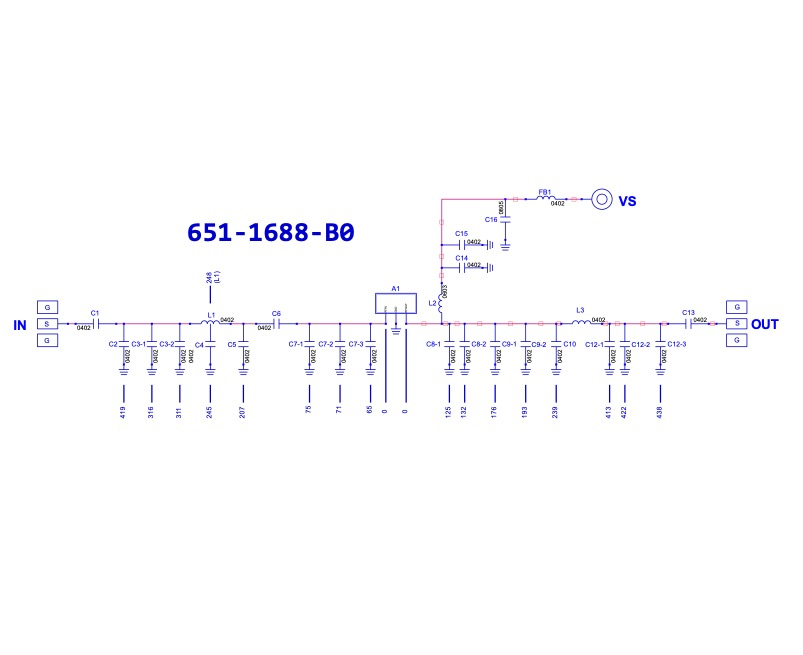

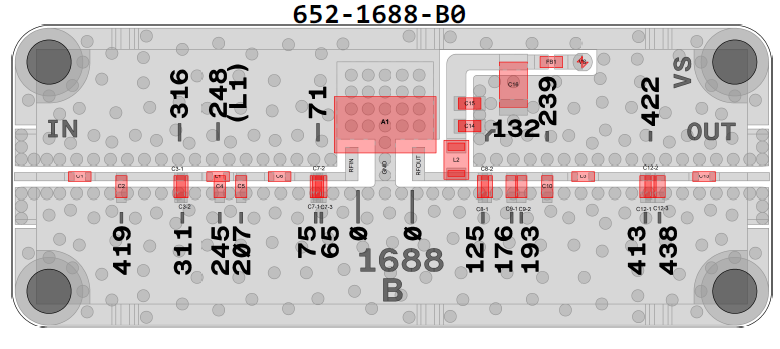

Amplifier, ADL5324ARKZ [PCB: 1688]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL5324ARKZ

Low Freq

 N/A 2110 MHz

High Freq

 N/A 2170 MHz

Gain

 N/A 14.6 dB

NF

 N/A 3.8 dB

P1dB

 N/A 29.1 dBm

IP3

 N/A 43.1 dBm

Voltage

 N/A 3.3 V

Current

 N/A 140 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.0V
Verify IDD ~133mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A5T5-0804D
