XM-A5T4-0404D
XR-A5T4-0404D ROHS

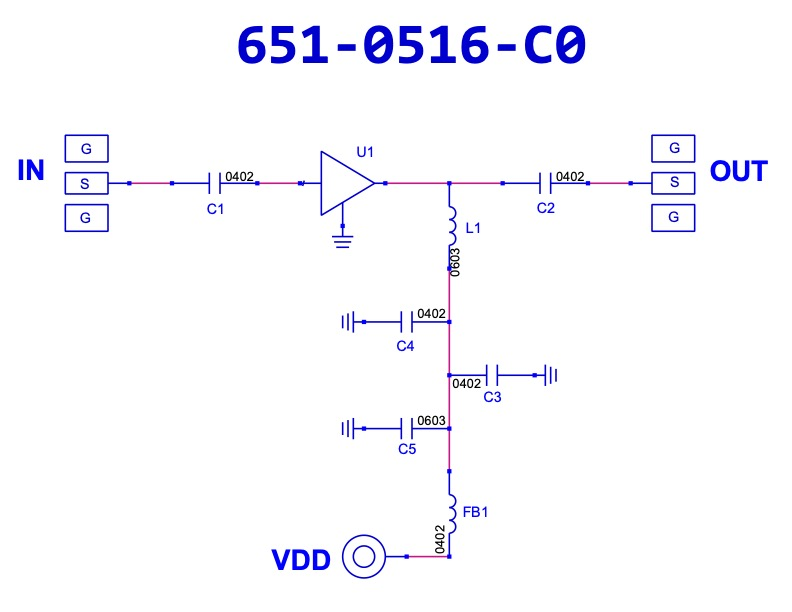

Amplifier, ADL5321ARKZ [PCB: 0516]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL5321ARKZ

Low Freq

 N/A 2300 MHz

High Freq

 N/A 4000 MHz

Gain

 N/A 14 dB

NF

 N/A 4 dB

P1dB

 N/A 25.7 dBm

IP3

 N/A 41 dBm

Voltage

 N/A 5 V

Current

 N/A 90 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~90mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Note: The ADL5321 incorporates a dynamically adjustable biasing
circuit that allows for the customization of OIP3 and P1dB
performance from 3.3 V to 5 V without the need for an external
bias resistor.

Part Number

 N/A XR-A5T4-0404D
