XM-A5L5-0404D
XR-A5L5-0404D ROHS

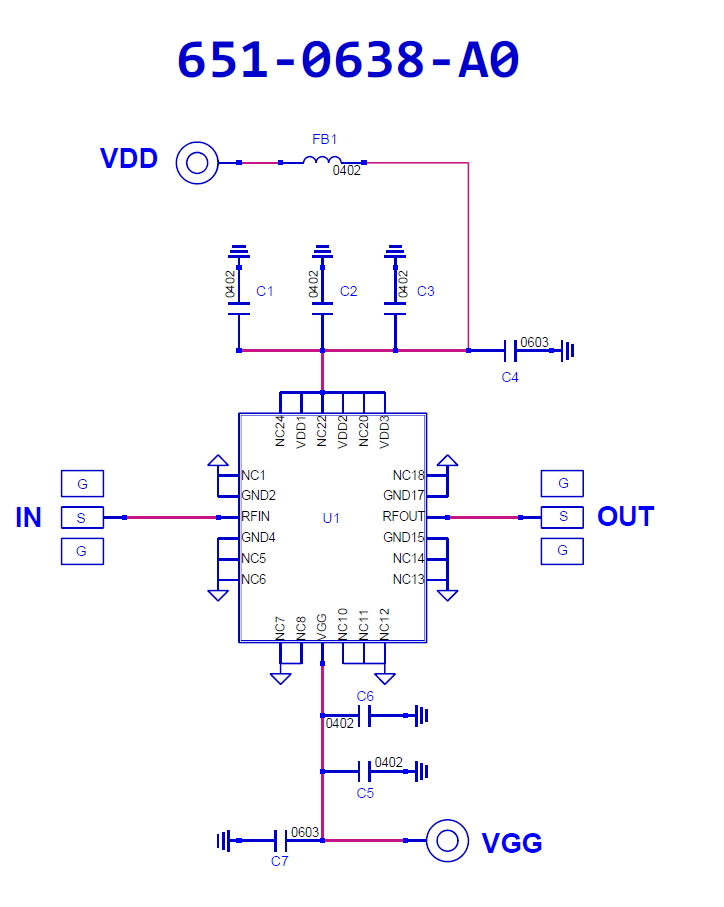

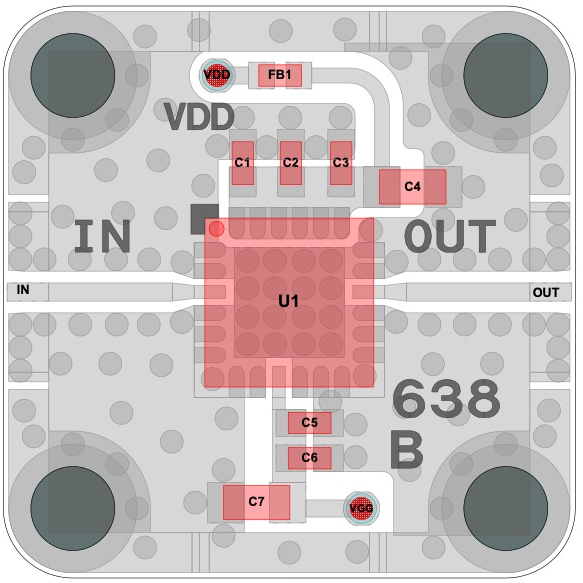

Amplifier, HMC499LC4 [PCB: 0638]
Recommended Bias Controller: XM-B1D1-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC499LC4

Low Freq

 N/A 21000 MHz

High Freq

 N/A 32000 MHz

Gain

 N/A 17 dB

NF

 N/A 5 dB

P1dB

 N/A 23 dBm

IP3

 N/A 34 dBm

Voltage

 N/A 5 V

Current

 N/A 200 mA

ALL_ASSET

 N/A 1162P 1163M 1164M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 5.0V
3. Adjust VGG more positive until IDQ reaches 200mA
Note: VGG ~ -0.8V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A5L5-0404D
