XM-A585-0404D
XR-A585-0404D ROHS

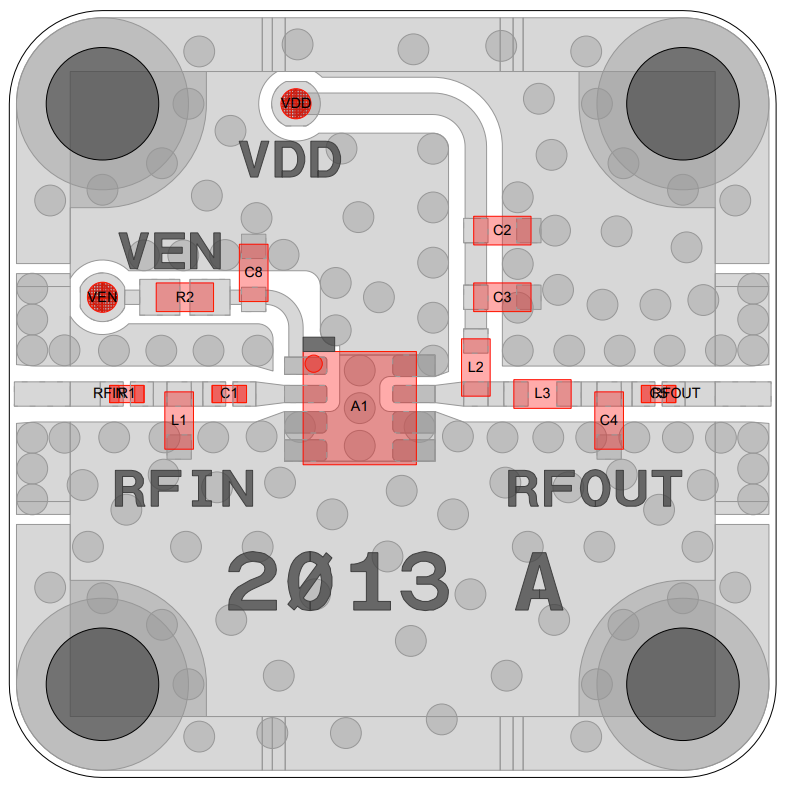

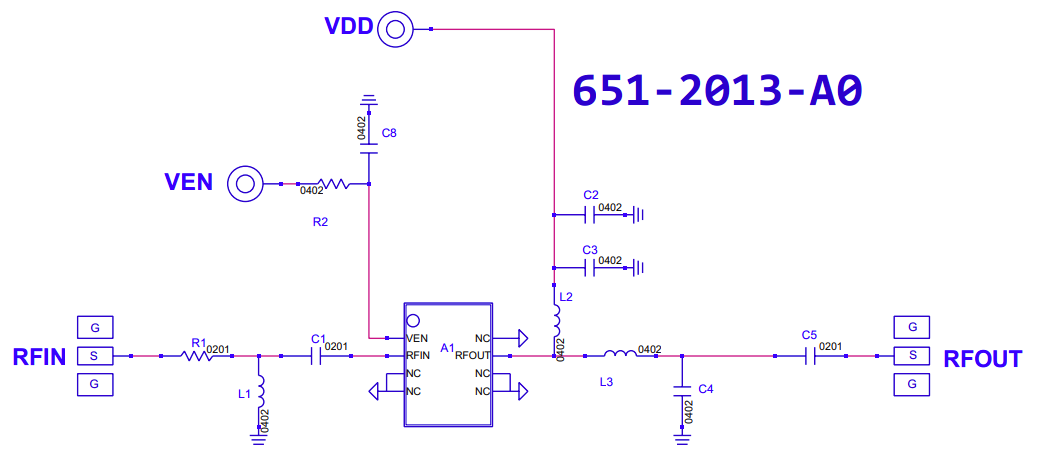

Amplifier, GRF2070 [PCB: 2013]
Recommended Bias Controller: XM-B817-0404D-SP

Product Page

 N/A Guerrilla RF

Spec Sheet

 N/A GRF2070

Low Freq

 N/A 100 MHz

High Freq

 N/A 1500 MHz

Gain

 N/A 2.8 dB

NF

 N/A 0.38 dB

P1dB

 N/A 20.1 dBm

IP3

 N/A 38.8 dBm

Voltage

 N/A 2.7 V

Current

 N/A 20 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
2. Apply VEN = VDD @3mA (<0.2V for OFF)
Note:
Verify IDD ~ 70mA

RF power can be applied at any time

Power-down Sequence
1. Adjust VEN to 0V
2. Adjust VDD to 0V

Part Number

 N/A XR-A585-0404D
