XM-A519-0404D
XR-A519-0404D ROHS

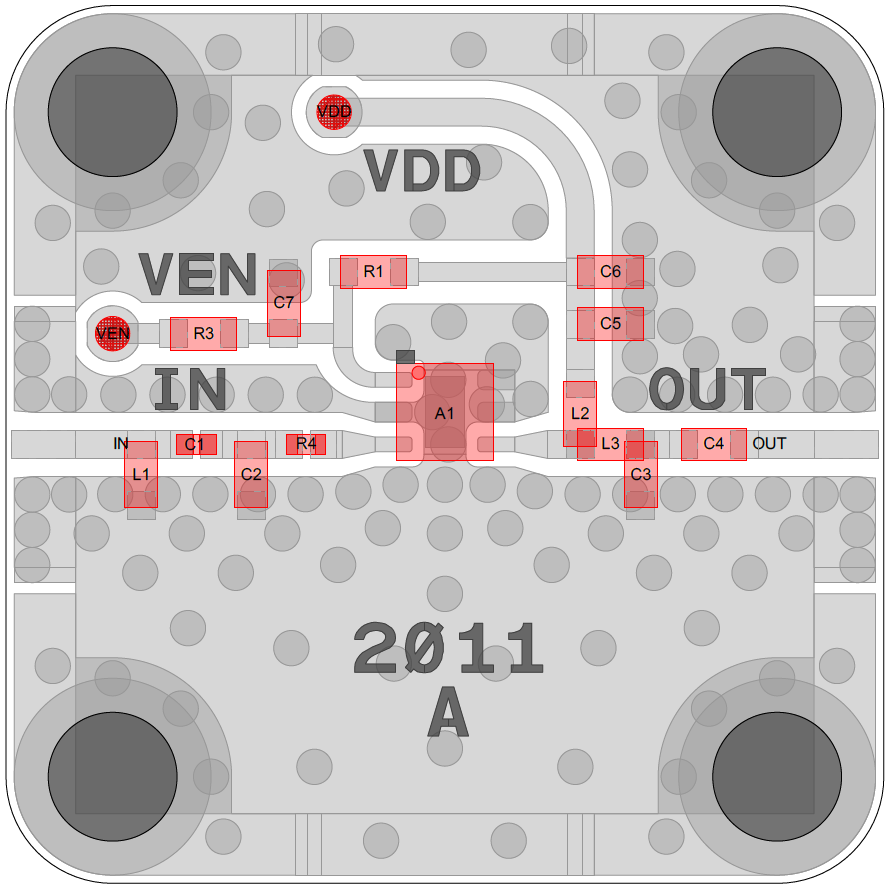

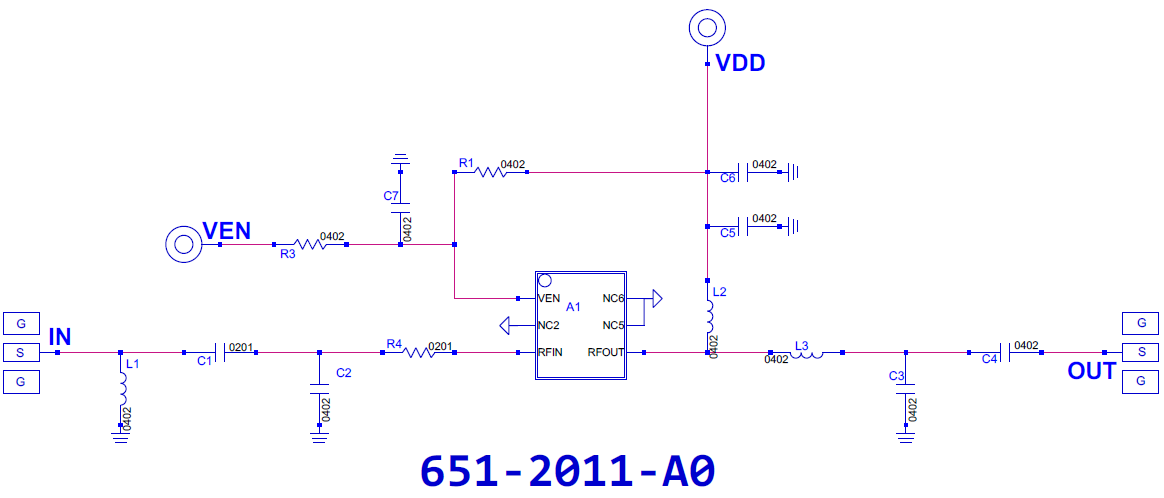

Amplifier, GRF4003 [PCB: 3431]
Recommended Bias Controller: XM-A2J8-0404D-SP

Product Page

 N/A Guerrilla RF

Spec Sheet

 N/A GRF4003

Low Freq

 N/A 100 MHz

High Freq

 N/A 3800 MHz

Gain

 N/A 12.5 dB

NF

 N/A 0.85 dB

P1dB

 N/A 25 dBm

IP3

 N/A 41 dBm

Voltage

 N/A 1.8 V

Current

 N/A 30 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +3.3V
2. Apply VEN = +3.3V (<0.2V for OFF)
Note:
Verify IDD ~ 85mA

RF power can be applied at any time

Power-down Sequence
1. Adjust VEN to 0V
2. Adjust VDD to 0V

Part Number

 N/A XR-A519-0404D
