XM-A4W9-0404D
XR-A4W9-0404D ROHS

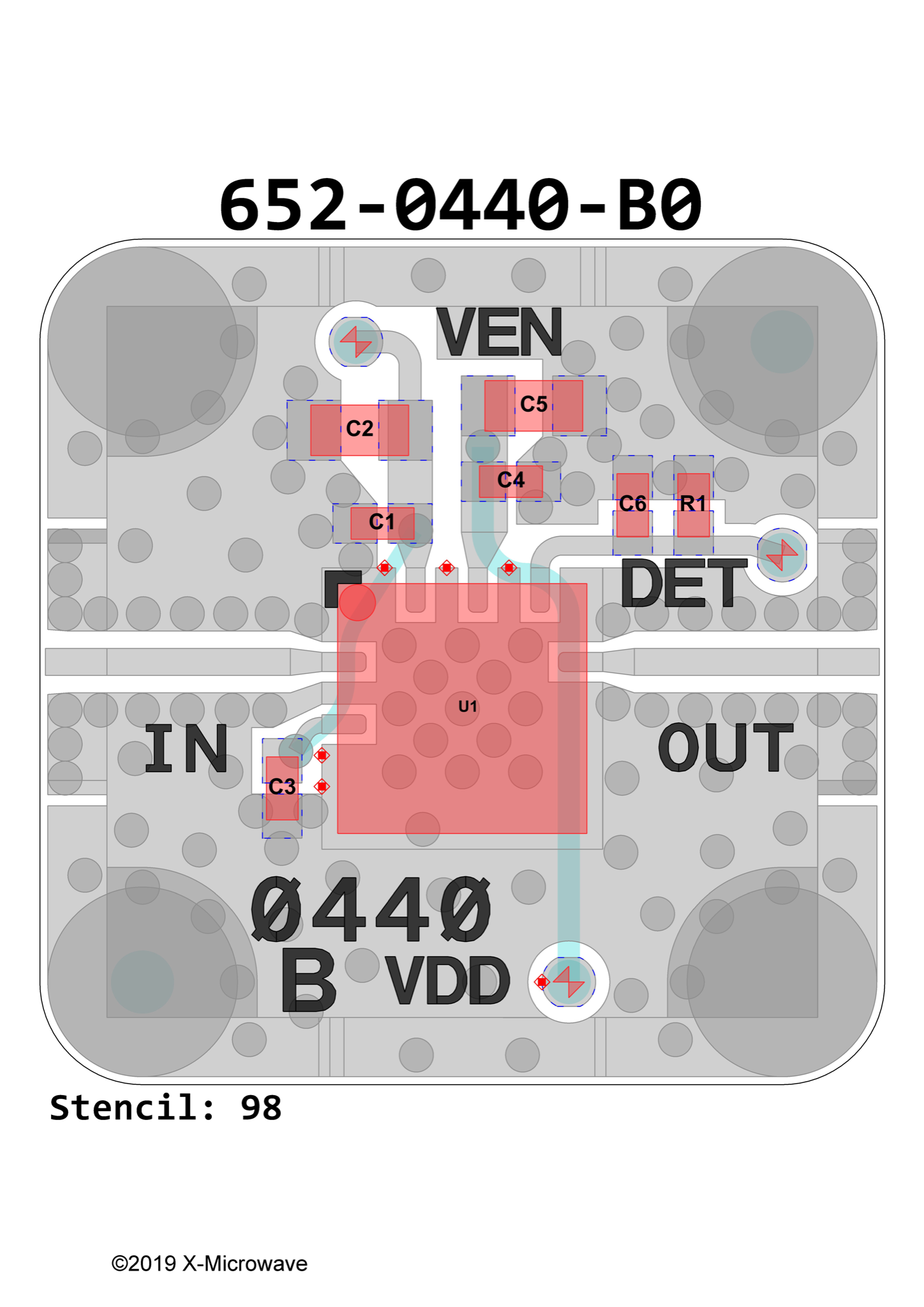

Amplifier, CMD171P4 [PCB: 0440]
Recommended Bias Controller: XM-A4Y1-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD171P4

Low Freq

 N/A 9500 MHz

High Freq

 N/A 11000 MHz

Gain

 N/A 21 dB

NF

 N/A 6.5 dB

P1dB

 N/A 28 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 5 V

Current

 N/A 380 mA

Bias Instruction

 N/A

Notes: VDD=+7V@380mA
Ven=+3V@0.5mA

Part Number

 N/A XR-A4W9-0404D
