XM-A4W7-0404D
XR-A4W7-0404D ROHS

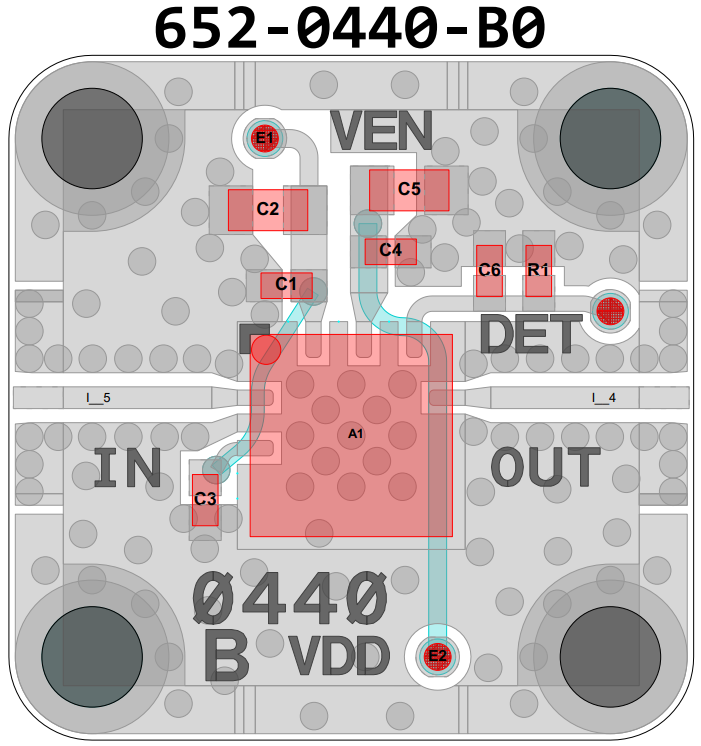

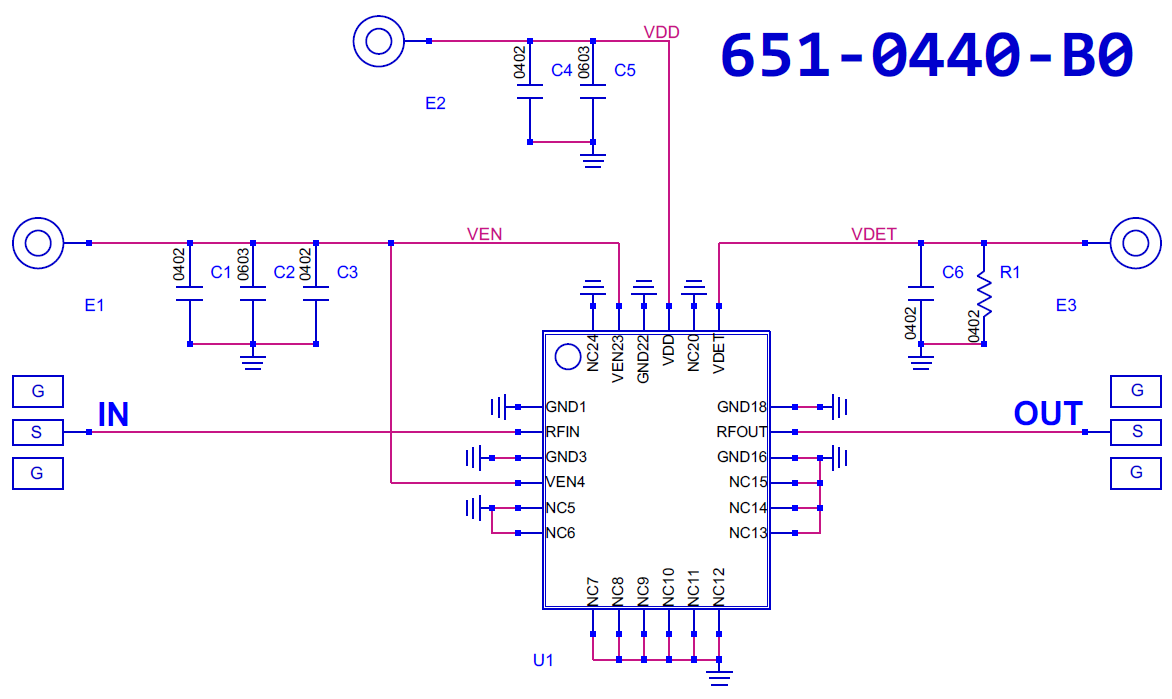

Amplifier, CMD170P4 [PCB: 0440]
Recommended Bias Controller: XM-A4W8-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD170P4

Low Freq

 N/A 7500 MHz

High Freq

 N/A 9000 MHz

Gain

 N/A 30 dB

NF

 N/A 6.5 dB

P1dB

 N/A 28.3 dBm

IP3

 N/A 34 dBm

Voltage

 N/A 5 V

Current

 N/A 365 mA

ALL_ASSET

 N/A 1096P 1097M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +7.0V
2. Apply VG = +3.0V
Note:
Verify IDD ~ 365mA

RF power can be applied at any time

Power-down Sequence
1. Adjust VG to 0V
2. Adjust VDD to 0V

Part Number

 N/A XR-A4W7-0404D
