XM-A4W1-0404D
XR-A4W1-0404D ROHS

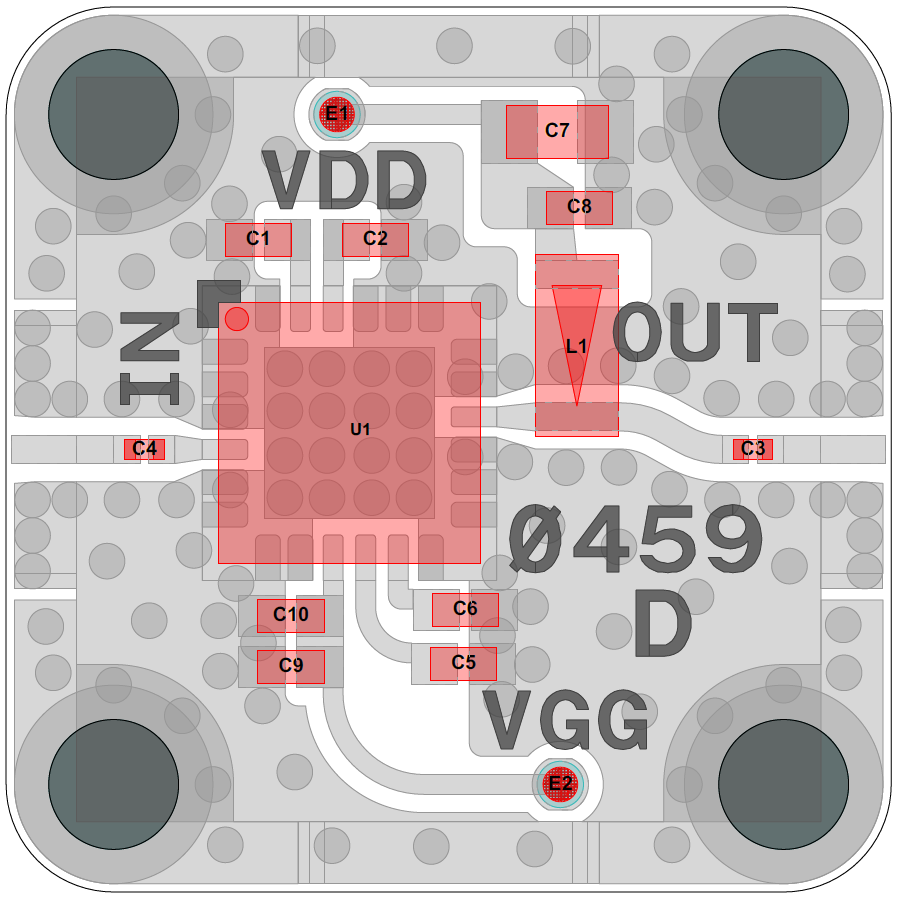

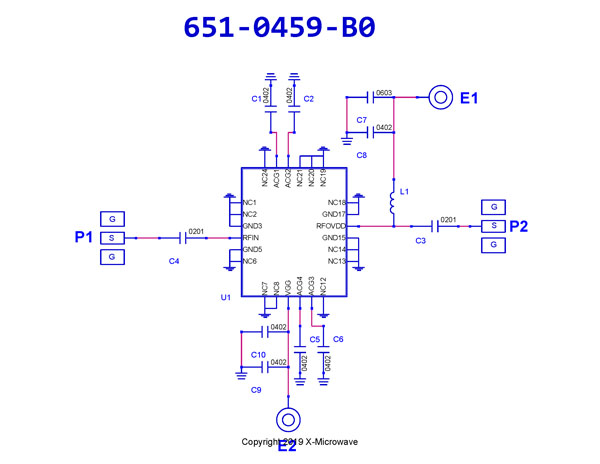

Amplifier, CMD240P4 [PCB: 0459]
Recommended Bias Controller: XM-A4W2-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD240P4

Low Freq

 N/A 50 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 15 dB

NF

 N/A 2.2 dB

P1dB

 N/A 19 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 5 V

Current

 N/A 80 mA

ALL_ASSET

 N/A 1105P 1106M 1107M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 5.0V
3. Adjust VGG more positive until IDQ reaches 80mA
Note: VGG ~ -0.6V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A4W1-0404D
