XM-A4V6-0404D
XR-A4V6-0404D ROHS

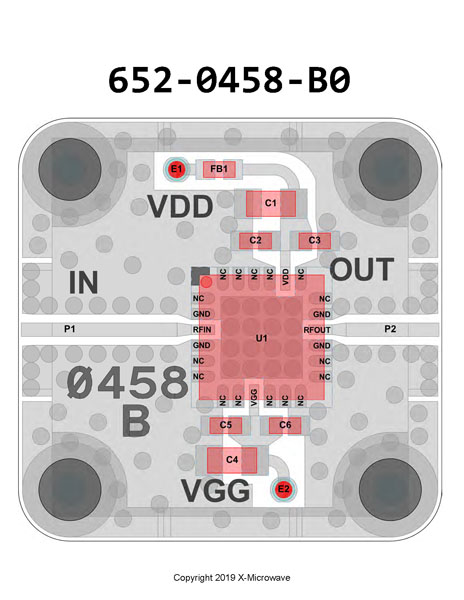

Amplifier, CMD219C4 [PCB: 0458]
Recommended Bias Controller: XM-A4V7-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD219C4

Low Freq

 N/A 4000 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 22.5 dB

NF

 N/A 1 dB

P1dB

 N/A 17 dBm

IP3

 N/A 28 dBm

Voltage

 N/A 5 V

Current

 N/A 75 mA

ALL_ASSET

 N/A 1103P 1104M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -4.0V
2. Apply VDD = 10.0V
3. Adjust VGG more positive until IDQ reaches 75mA
Note: VGG ~ -2.3V, Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -4.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-A4V6-0404D
