XM-A4F1-0204D
XR-A4F1-0204D ROHS

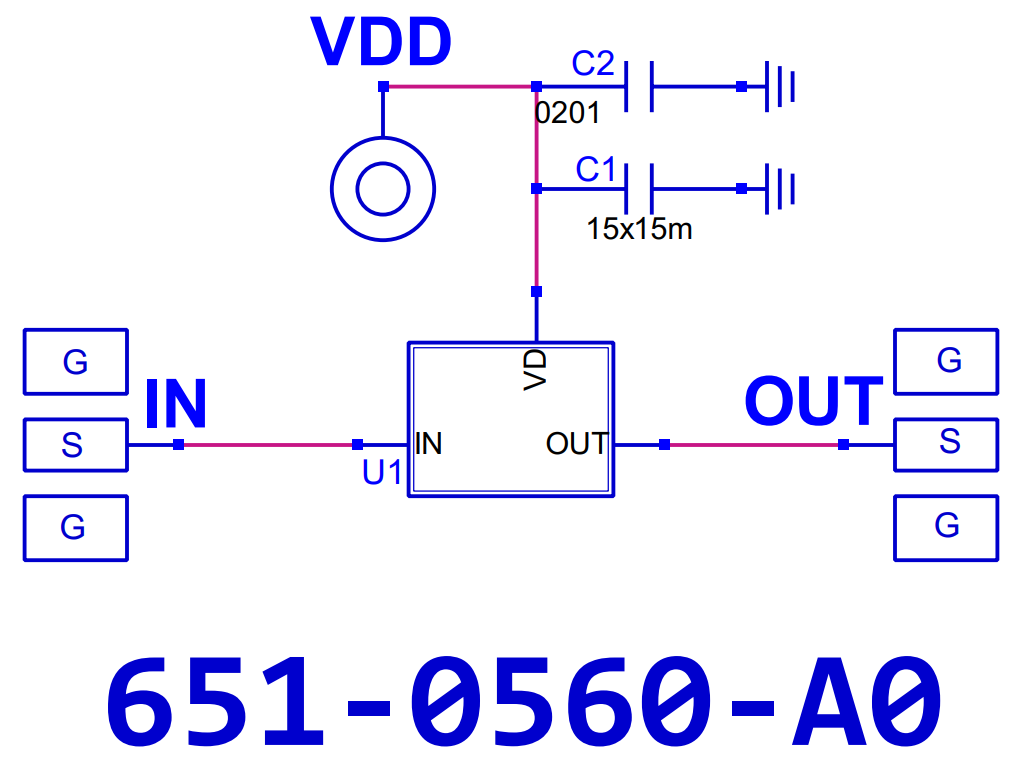

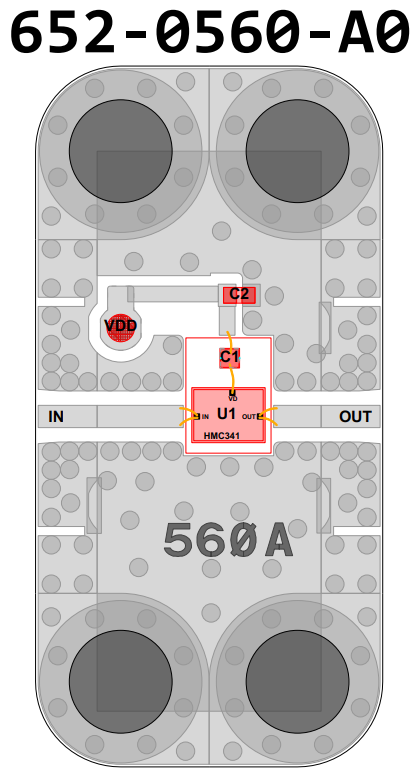

Amplifier, HMC341 [PCB: 0560]
Recommended Bias Controller: XM-B1C1-0204D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC341

Low Freq

 N/A 24000 MHz

High Freq

 N/A 30000 MHz

Gain

 N/A 13 dB

NF

 N/A 2.5 dB

P1dB

 N/A 6 dBm

IP3

 N/A 16 dBm

Voltage

 N/A 3 V

Current

 N/A 30 mA

ALL_ASSET

 N/A 1137P

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.0V
Verify IDD ~30 mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A4F1-0204D
