XM-A4D6-0404D
XR-A4D6-0404D ROHS

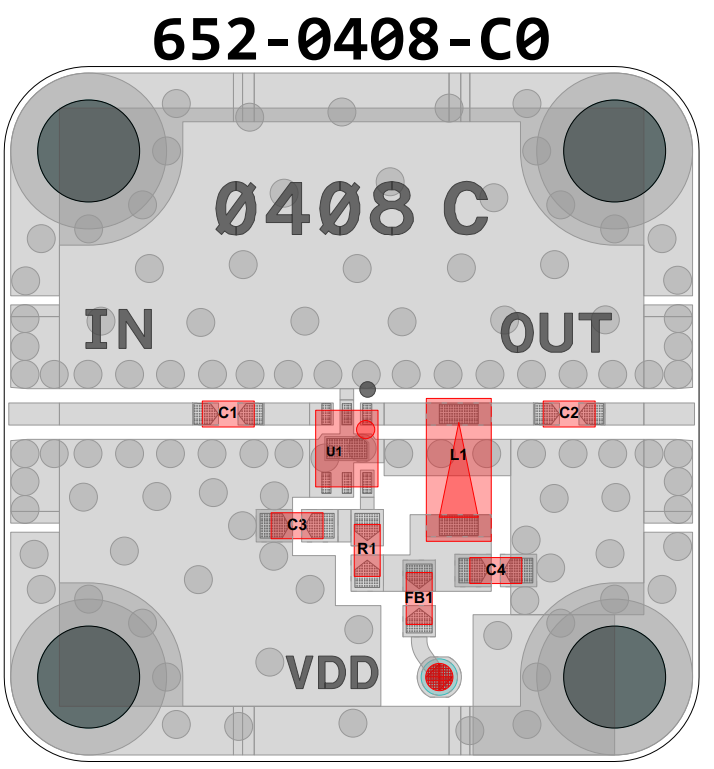

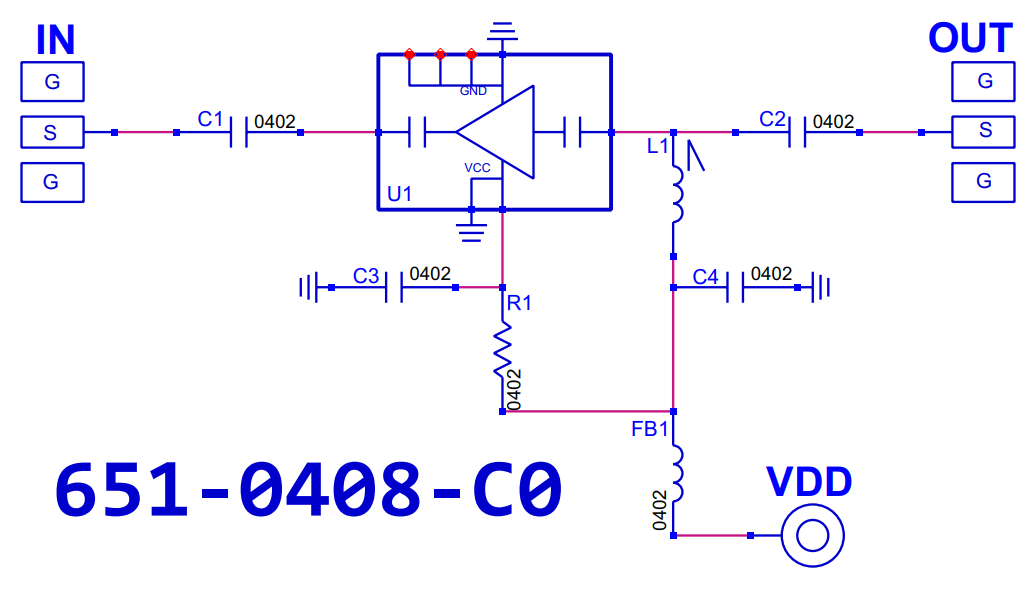

Amplifier, MAAM-011206 [PCB: 0408]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAM-011206

Low Freq

 N/A 50 MHz

High Freq

 N/A 15000 MHz

Gain

 N/A 13.5 dB

NF

 N/A 4.5 dB

P1dB

 N/A 18 dBm

IP3

 N/A 28 dBm

Voltage

 N/A 3.3 V

Current

 N/A 72 mA

ALL_ASSET

 N/A 1091P 1092M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~72mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A4D6-0404D
