XM-A496-0404D
XR-A496-0404D ROHS

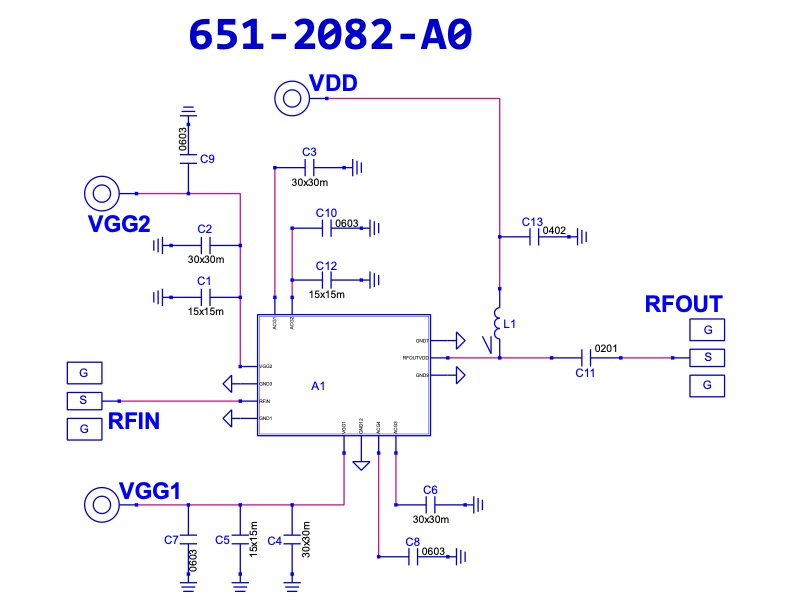

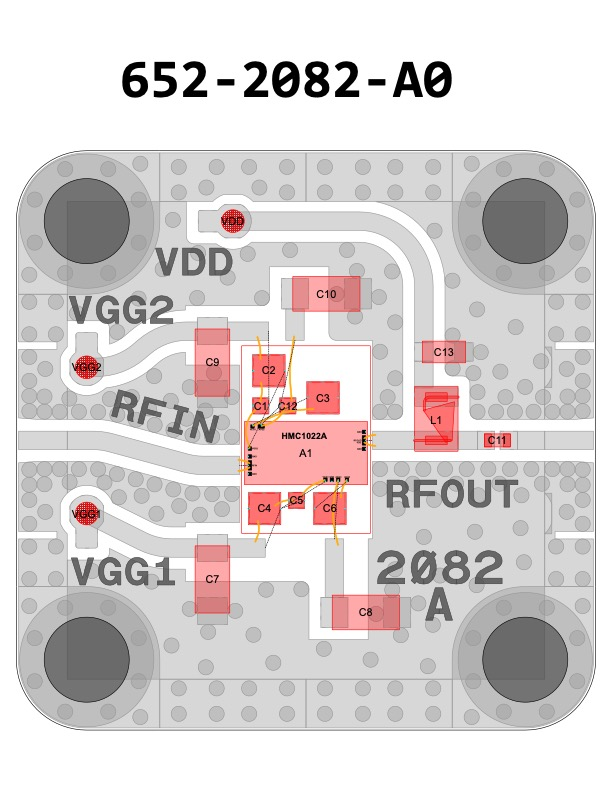

Amplifier, HMC1022ACHIPS [PCB: 2082]
Product Page |
N/A ADI |
Spec Sheet |
N/A
HMC1022ACHIPS |
Low Freq |
N/A 0 MHz |
High Freq |
N/A 48000 MHz |
Gain |
N/A 11.5 dB |
NF |
N/A 4.5 dB |
P1dB |
N/A 25 dBm |
IP3 |
N/A 33 dBm |
Voltage |
N/A 10.0 V |
Current |
N/A 150 mA |
Part Number |
N/A XR-A496-0404D ROHS |
