XM-A486-0404D
XR-A486-0404D ROHS

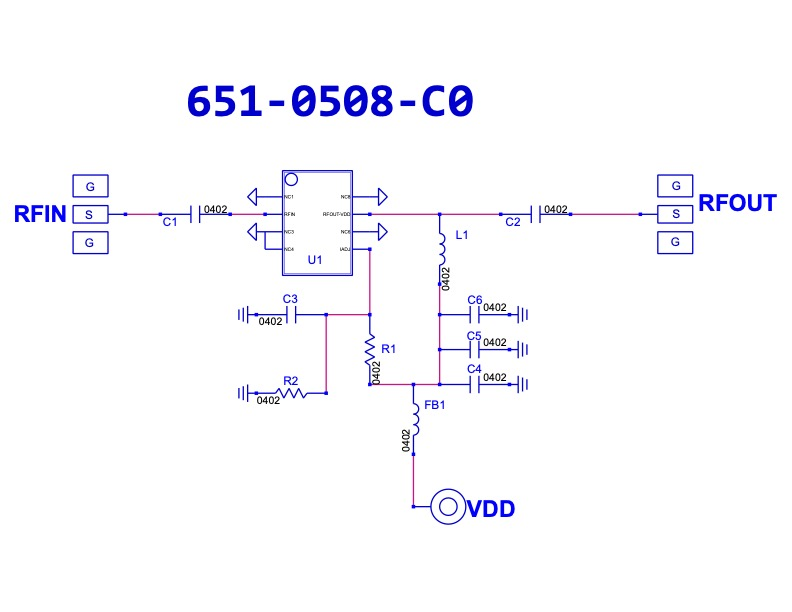

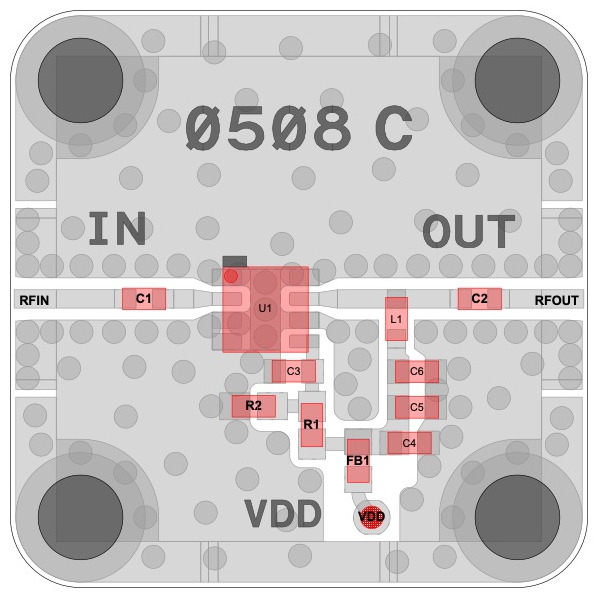

Amplifier, MAAL-011229 [PCB: 0508]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-011229

Voltage

 N/A 3 V

Current

 N/A 150 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +3V
Verify IDD ~150mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A486-0404D
