XM-A3Y2-0404D
XR-A3Y2-0404D ROHS

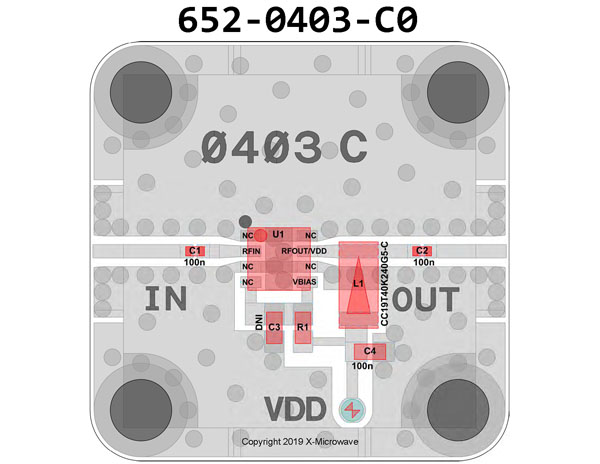

Amplifier, MAAL-011130 [PCB: 0403]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-011130

Low Freq

 N/A 2400 MHz

High Freq

 N/A 18500 MHz

Gain

 N/A 21 dB

NF

 N/A 1.4 dB

P1dB

 N/A 14 dBm

IP3

 N/A 20 dBm

Voltage

 N/A 3.3 V

Current

 N/A 76 mA

ALL_ASSET

 N/A 1085P 1086M 1087M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~76mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A3Y2-0404D
