XM-A3R4-0404D
XR-A3R4-0404D ROHS

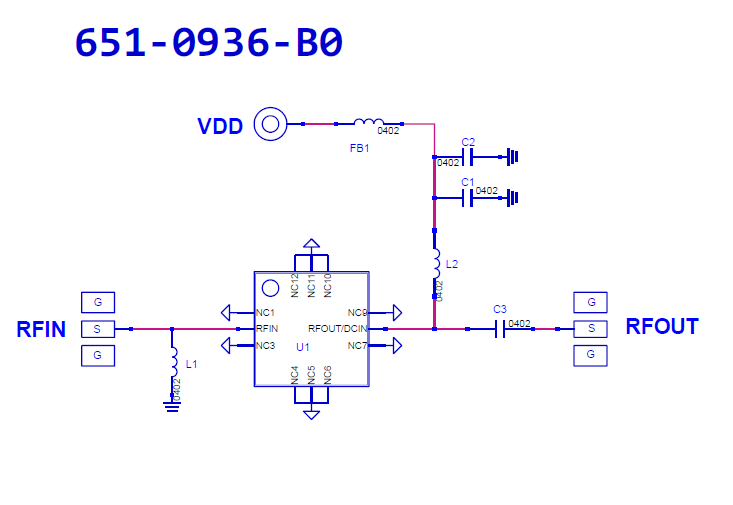

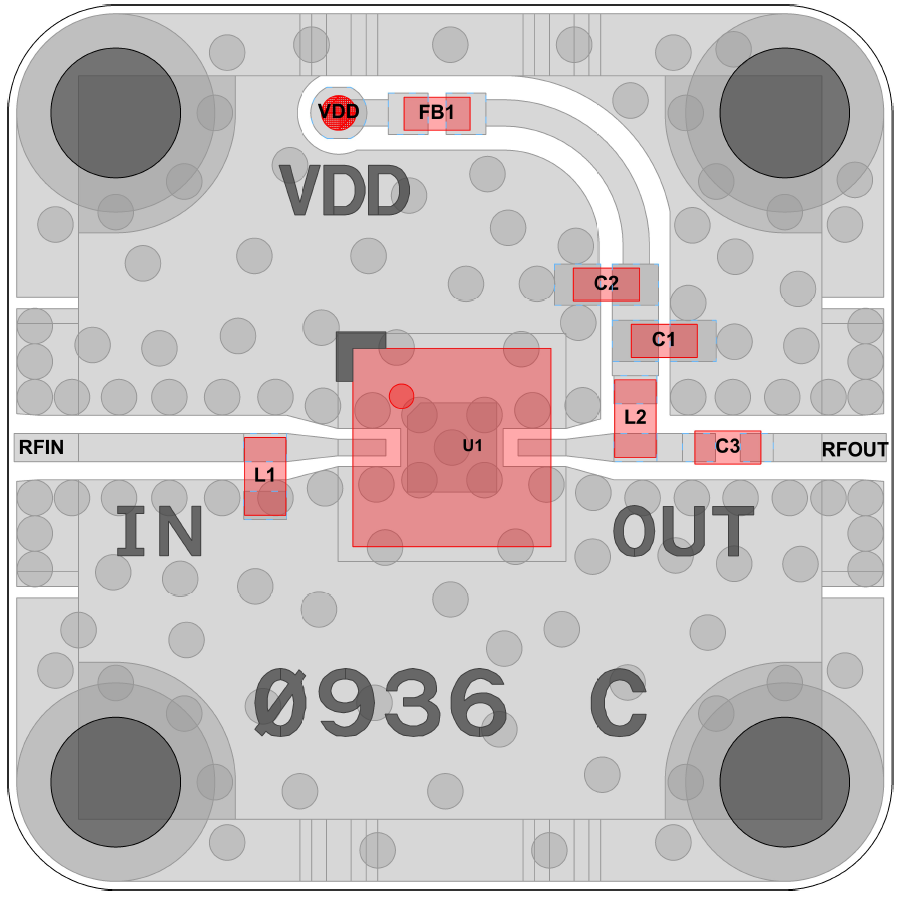

Amplifier, PMA3-83LN+ [PCB: 0936]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A PMA3-83LN+

Low Freq

 N/A 500 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 21.5 dB

NF

 N/A 1.5 dB

P1dB

 N/A 20.7 dBm

IP3

 N/A 34 dBm

Voltage

 N/A 5 V

Current

 N/A 77 mA

ALL_ASSET

 N/A 1230P 1231M 1232M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~60mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A3R4-0404D
