XM-A3K5-0404D
XR-A3K5-0404D ROHS

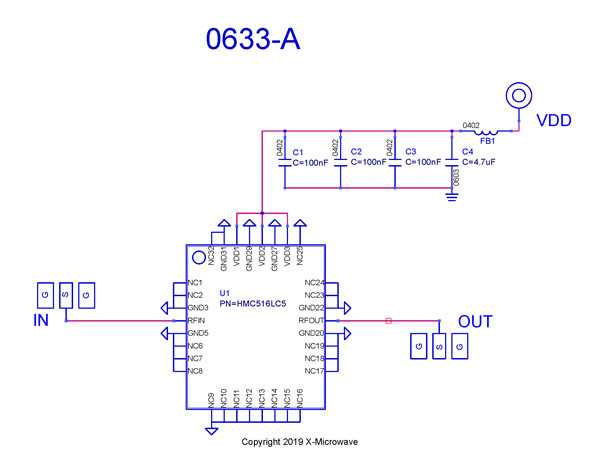

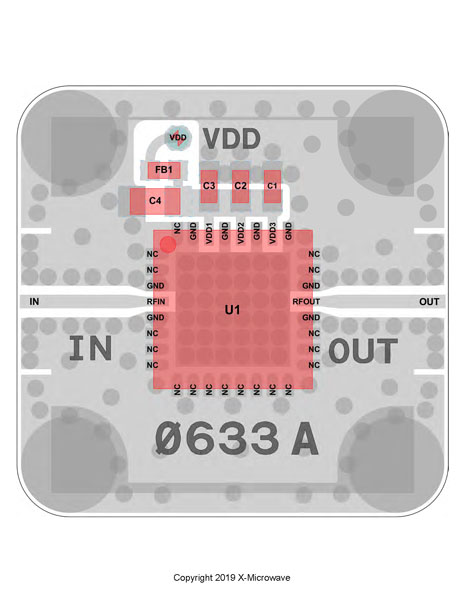

Amplifier, HMC516LC5 [PCB: 0633]
Recommended Bias Controller: XM-A2R9-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC516LC5

Low Freq

 N/A 9000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 20 dB

NF

 N/A 2 dB

P1dB

 N/A 14 dBm

IP3

 N/A 25 dBm

Voltage

 N/A 3.3 V

Current

 N/A 88 mA

ALL_ASSET

 N/A 1157P 1158M 1159M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.0V
Verify IDD ~65mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A3K5-0404D
