XM-A3J3-0810D
XR-A3J3-0810D ROHS

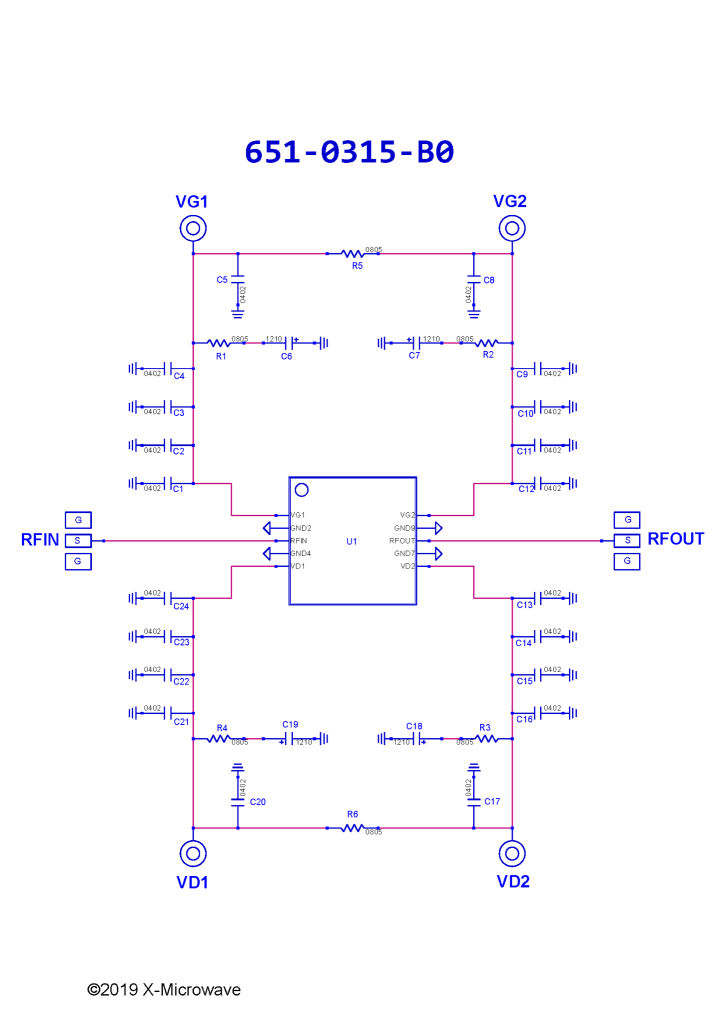

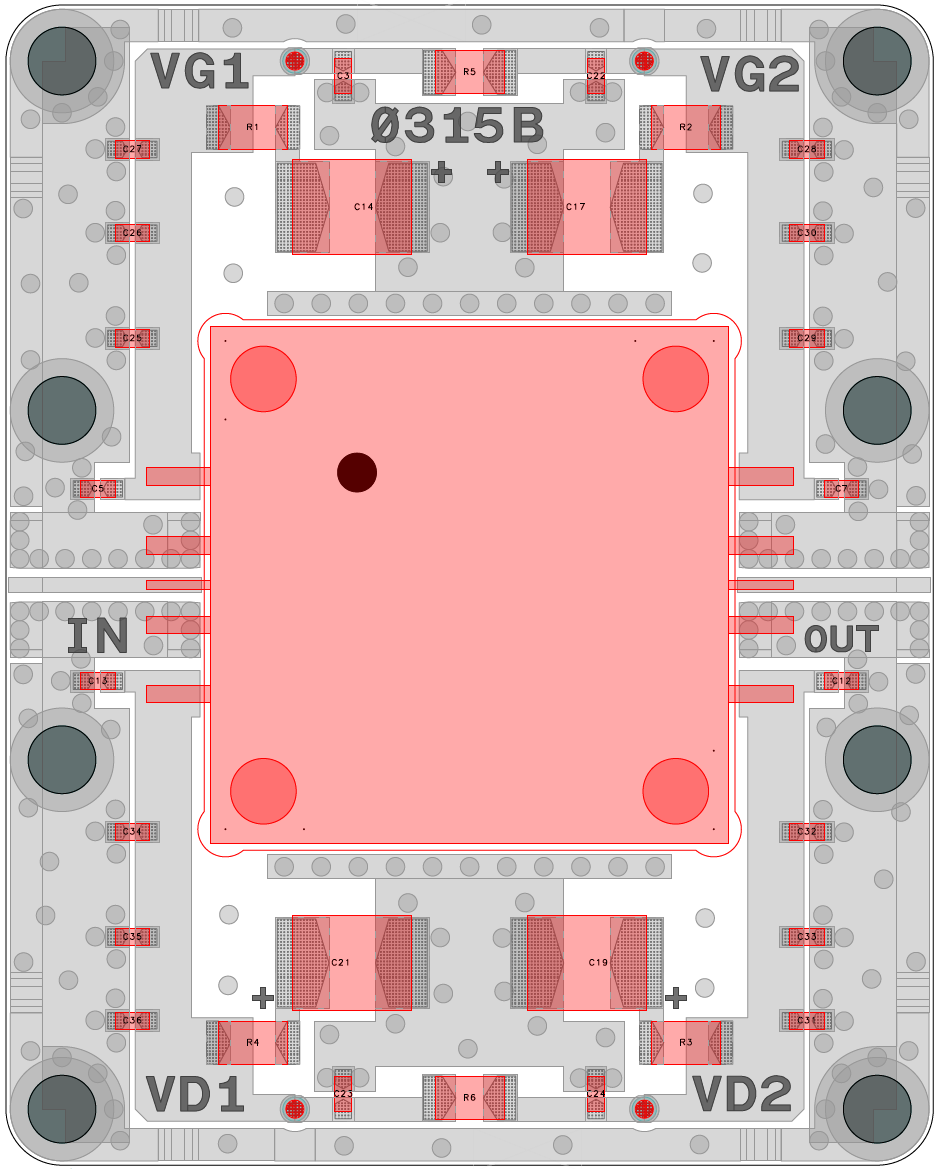

Amplifier, TGA2214-CP [PCB: 0315]
Recommended Bias Controller: XM-C121-0810D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA2214-CP

Low Freq

 N/A 2000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 22 dB

Voltage

 N/A 22 V

Current

 N/A 600 mA

ALL_ASSET

 N/A 1074P 1075M 1076M

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = VG2 = -5.0V
2. Apply VD1 = VD2 = 22.0V
3. Adjust VG1 and VG2 more positive until IDQ reaches 600mA
Note: VG1 ~ -2.3V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 = VG2 to -5.0V
3. Adjust VD1 = VD2 to 0V

Part Number

 N/A XR-A3J3-0810D
