XM-A3J2-0604D
XR-A3J2-0604D ROHS

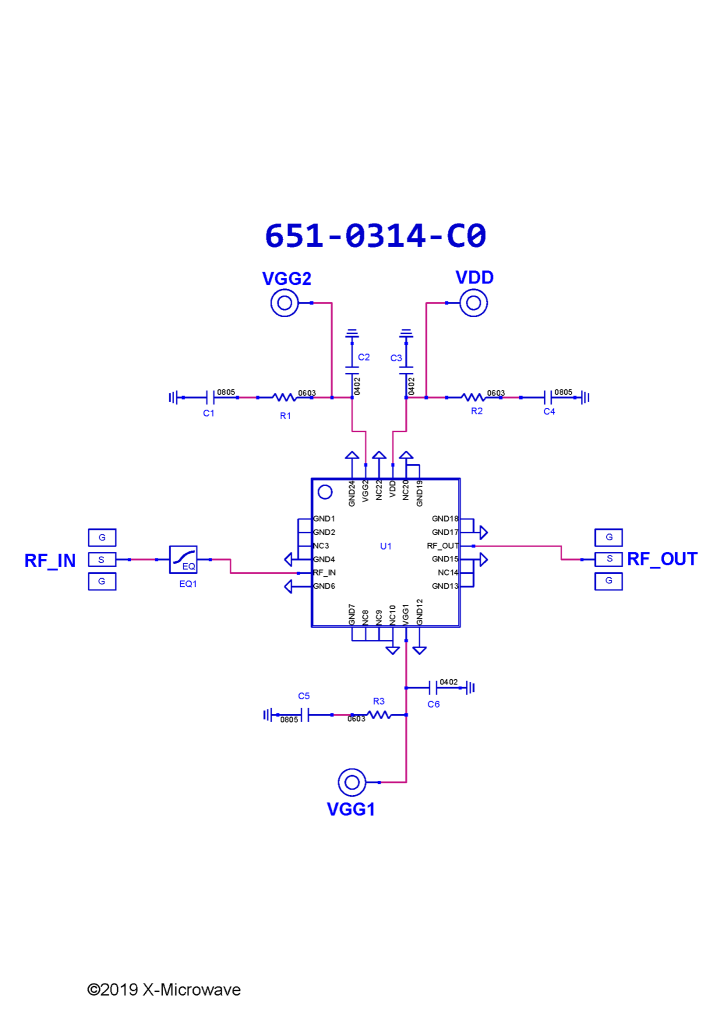

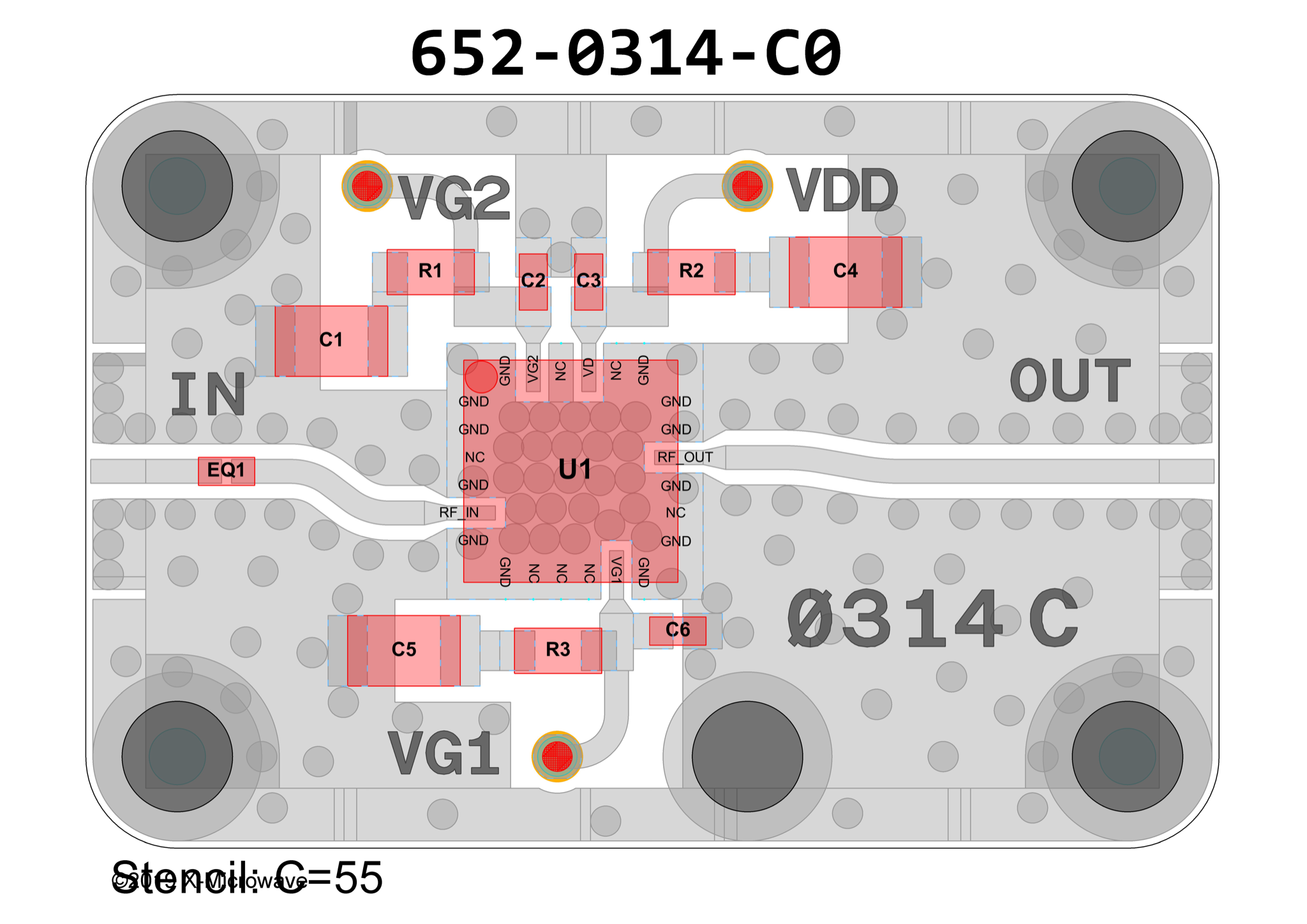

Amplifier, TGA2567-SM [PCB: 0314]
Recommended Bias Controller: XM-A7F7-0604D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA2567-SM

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 17 dB

NF

 N/A 2 dB

P1dB

 N/A 19 dBm

IP3

 N/A 29 dBm

Voltage

 N/A 5 V

Current

 N/A 100 mA

ALL_ASSET

 N/A 1071P 1072M 1073M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -1.5V
2. Apply VDD = 5.0V
3. Apply VG2 = +1.3V
4. Adjust VG1 more positive until IDQ reaches 100mA
Note: VG1 ~ -0.7V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -1.5V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-A3J2-0604D
