XM-A3B1-0804D
XR-A3B1-0804D ROHS

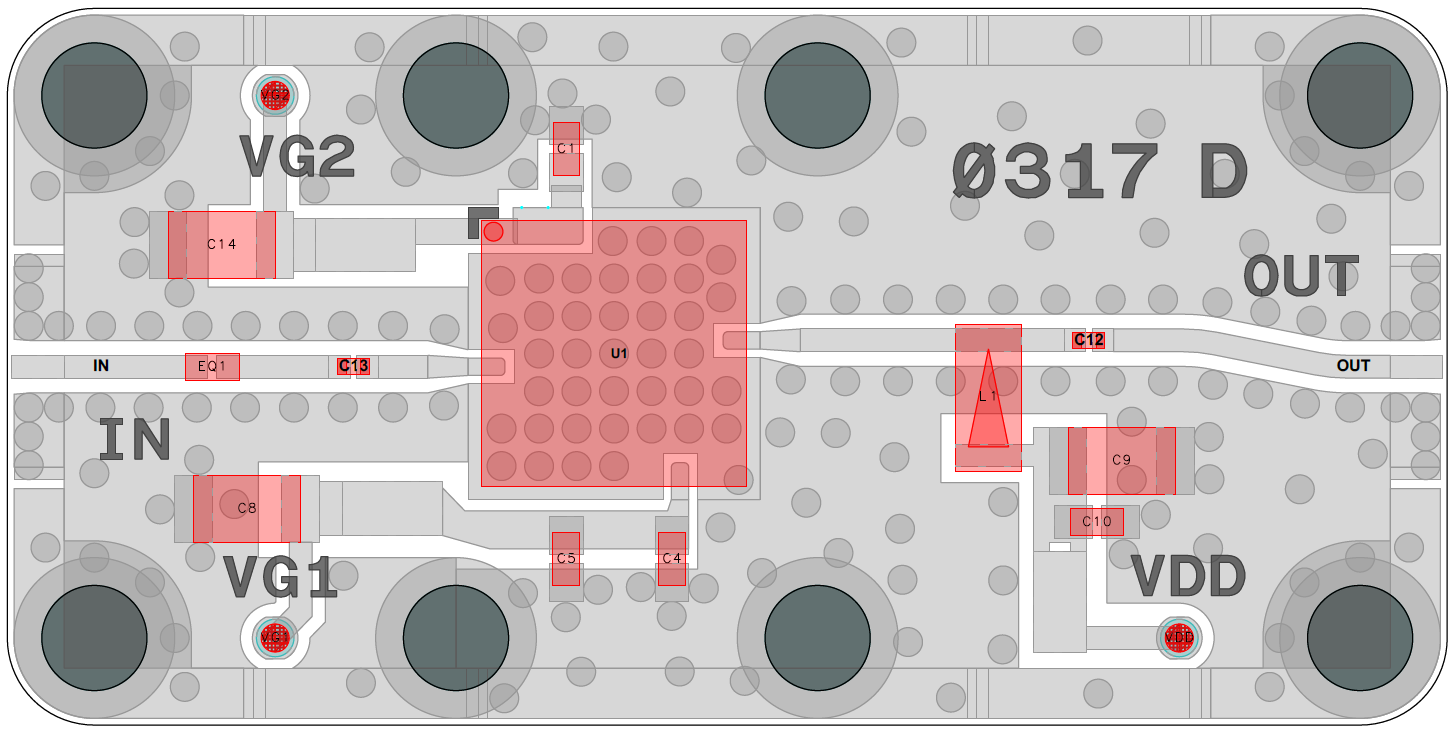

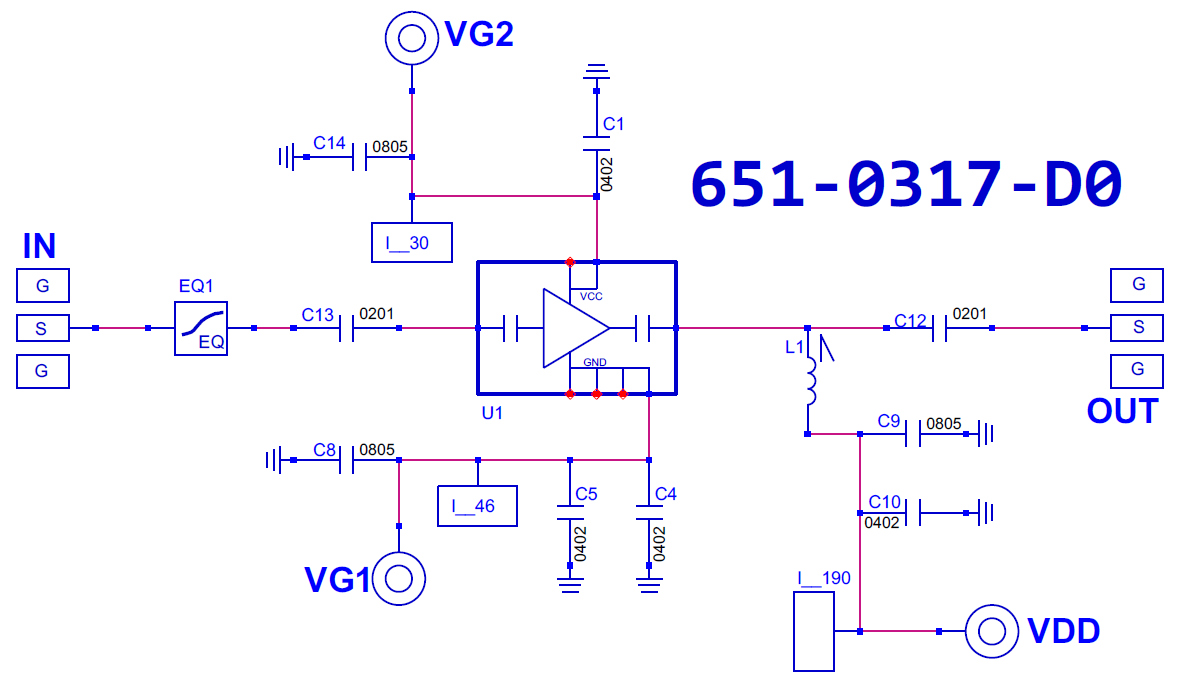

Amplifier, HMC464LP5E [PCB: 0317]

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC464LP5E

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 14 dB

NF

 N/A 4 dB

P1dB

 N/A 25 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 8 V

Current

 N/A 290 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = +8.0V
3. Apply VG2 = +3.0V
4. Adjust VG1 more positive until IDD reaches ~290mA
2. Apply RF Input

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-A3B1-0804D
