XM-A3A6-0404D
XR-A3A6-0404D ROHS

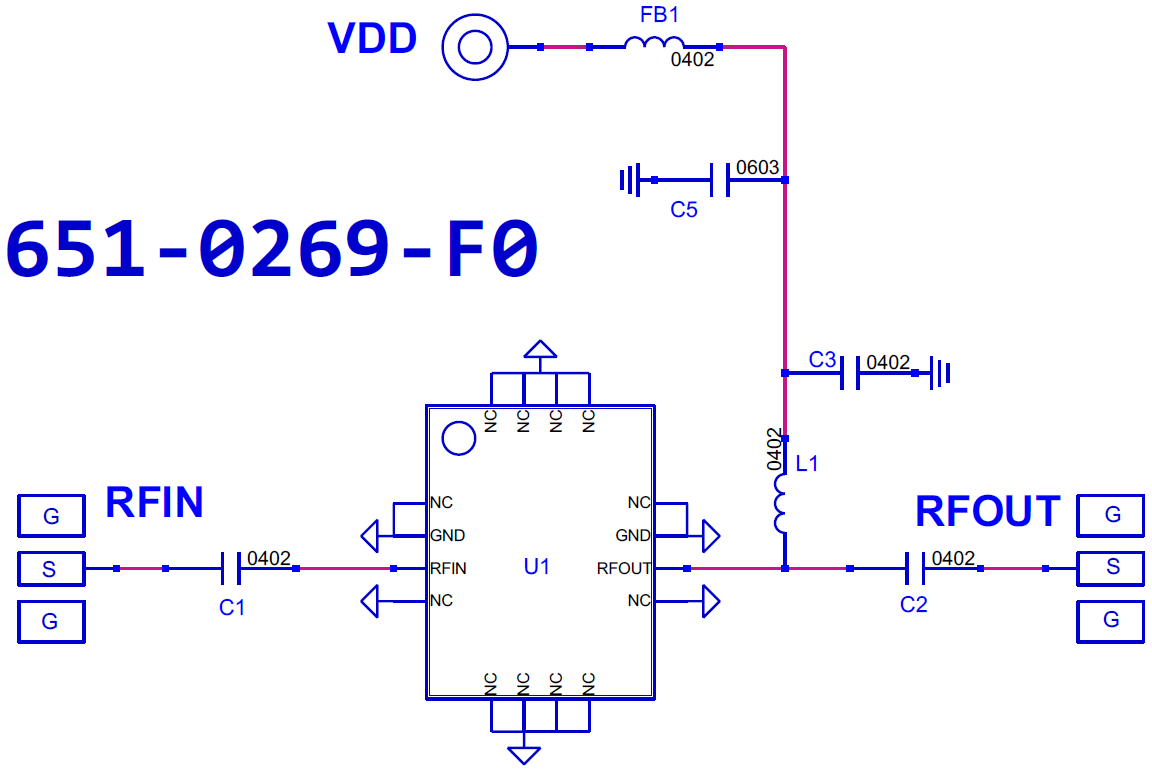

Amplifier, AM1024 [PCB: 0269]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Atlanta Micro

Low Freq

 N/A 20 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 20 dB

NF

 N/A 3.1 dB

P1dB

 N/A 17 dBm

IP3

 N/A 29 dBm

Voltage

 N/A 5 V

Current

 N/A 100 mA

Bias Instruction

 N/A

Power-up Sequence
1. Set VDD to +5V (@100mA typ.)
2. Apply the RF input signal

Power-down Sequence
1. Remove the RF input signal
2. Set VDD to 0V

Part Number

 N/A XR-A3A6-0404D
