XM-A356-0404D
XR-A356-0404D ROHS

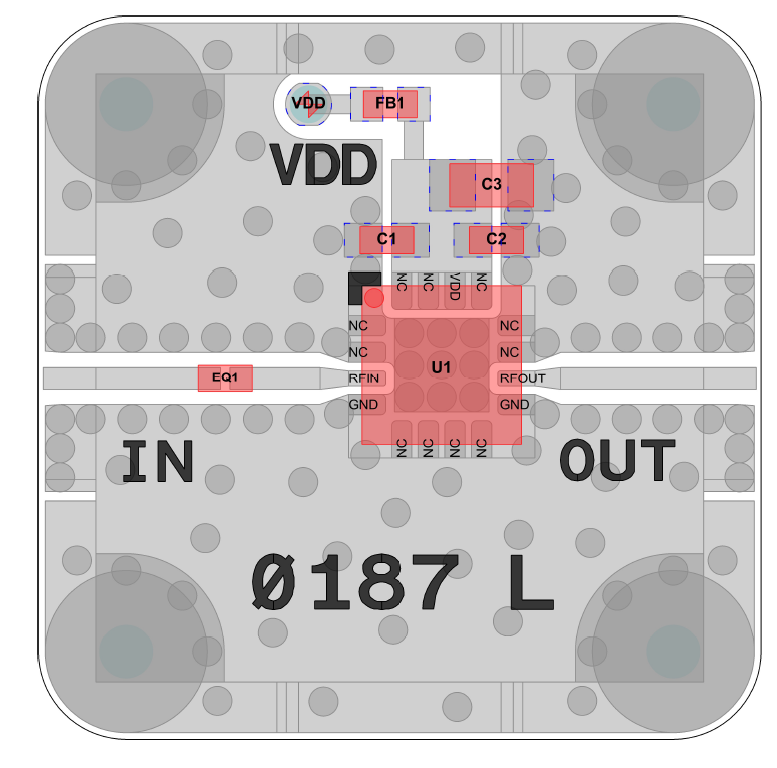

Amplifier, CMD158P3 [PCB: 0187]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD158P3

Low Freq

 N/A 6000 MHz

High Freq

 N/A 14000 MHz

Gain

 N/A 19.5 dB

NF

 N/A 5 dB

P1dB

 N/A 19.5 dBm

IP3

 N/A 26.5 dBm

Voltage

 N/A 5 V

Current

 N/A 95 mA

Bias Instruction

 N/A

Power-up Sequence
1. Set +VDD to +5V @95mA
2. Apply the RF input signal

Power-down Sequence
1. Remove the RF input signal
2. Set +VDD to 0V

*Note: RF power can be applied at any time

Part Number

 N/A XR-A356-0404D
