XM-A345-0404D
XR-A345-0404D ROHS

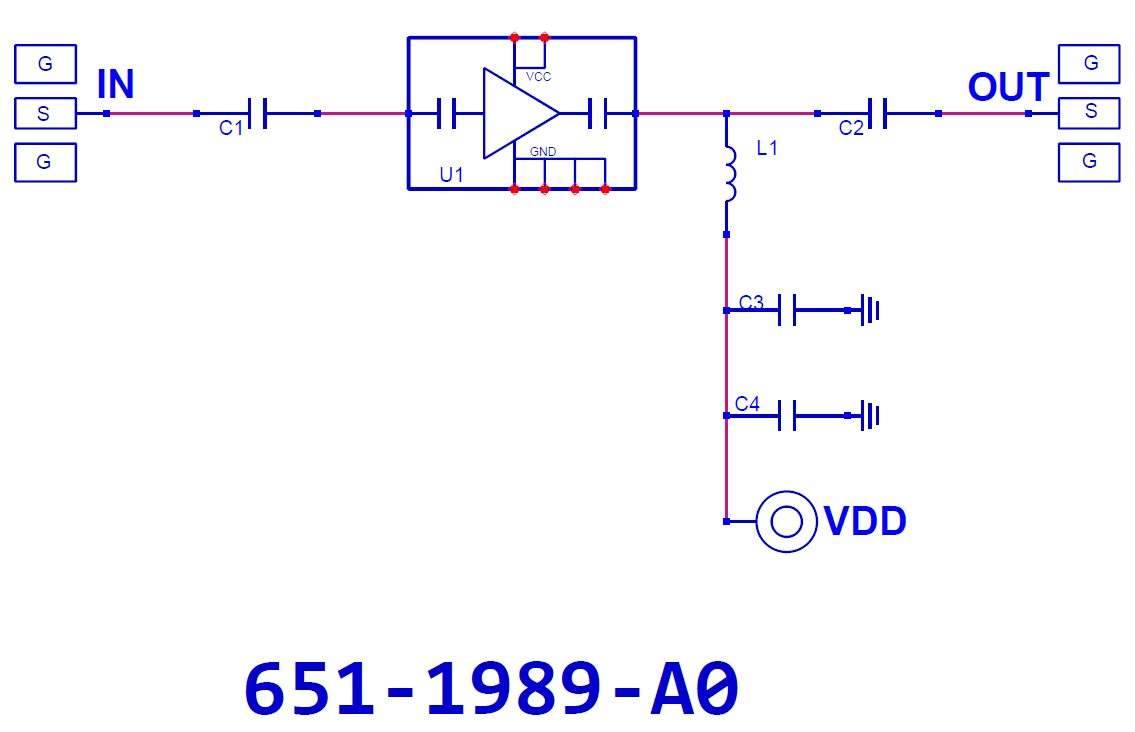

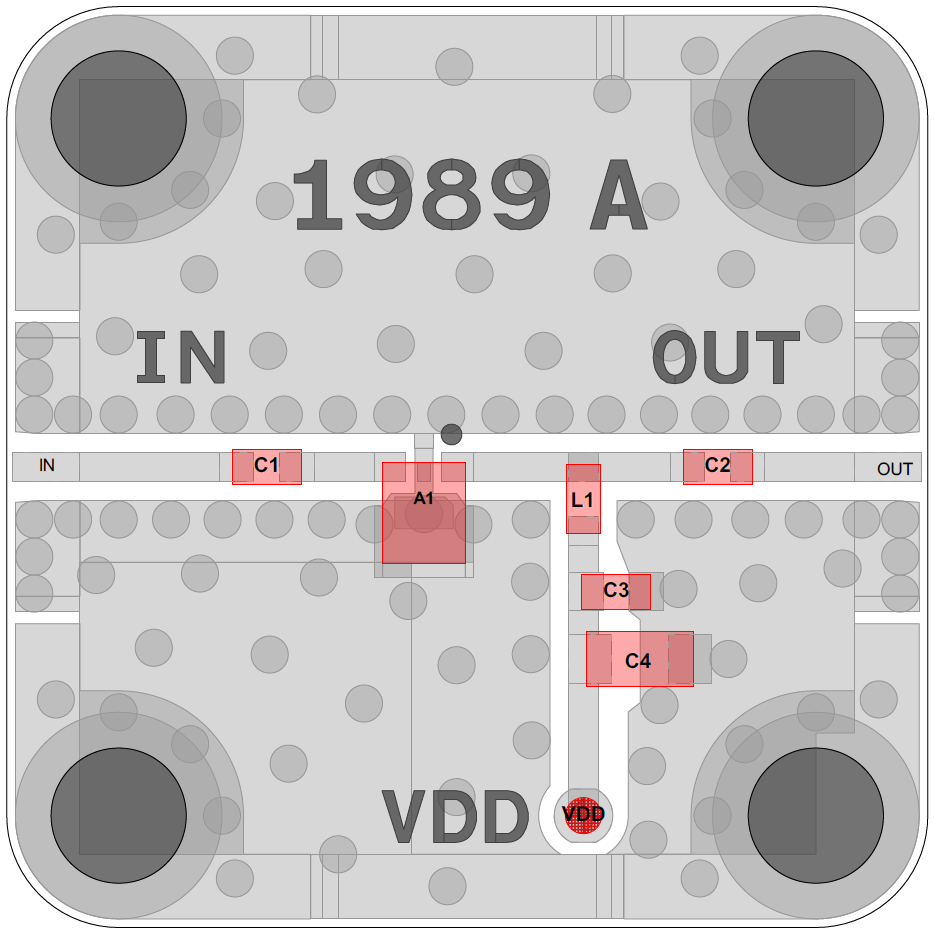

Amplifier, MAAM-011101 [PCB: 1989]
Recommended Bias Controller: XM-A4E3-0404D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAM-011101

Low Freq

 N/A 4000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 16 dB

NF

 N/A 4 dB

P1dB

 N/A 19 dBm

IP3

 N/A 30 dBm

Voltage

 N/A 5 V

Current

 N/A 45 mA

ALL_ASSET

 N/A 1377P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 8.0V
Verify IDD ~45mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A345-0404D
