XM-A343-0604D
XR-A343-0604D ROHS

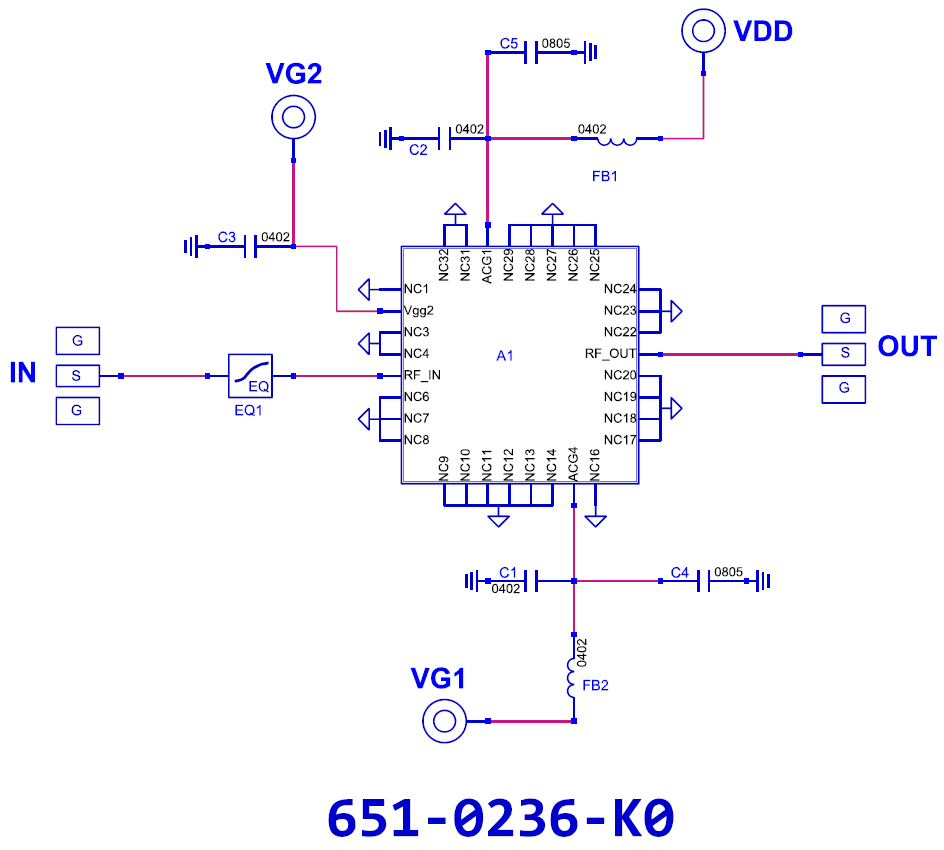

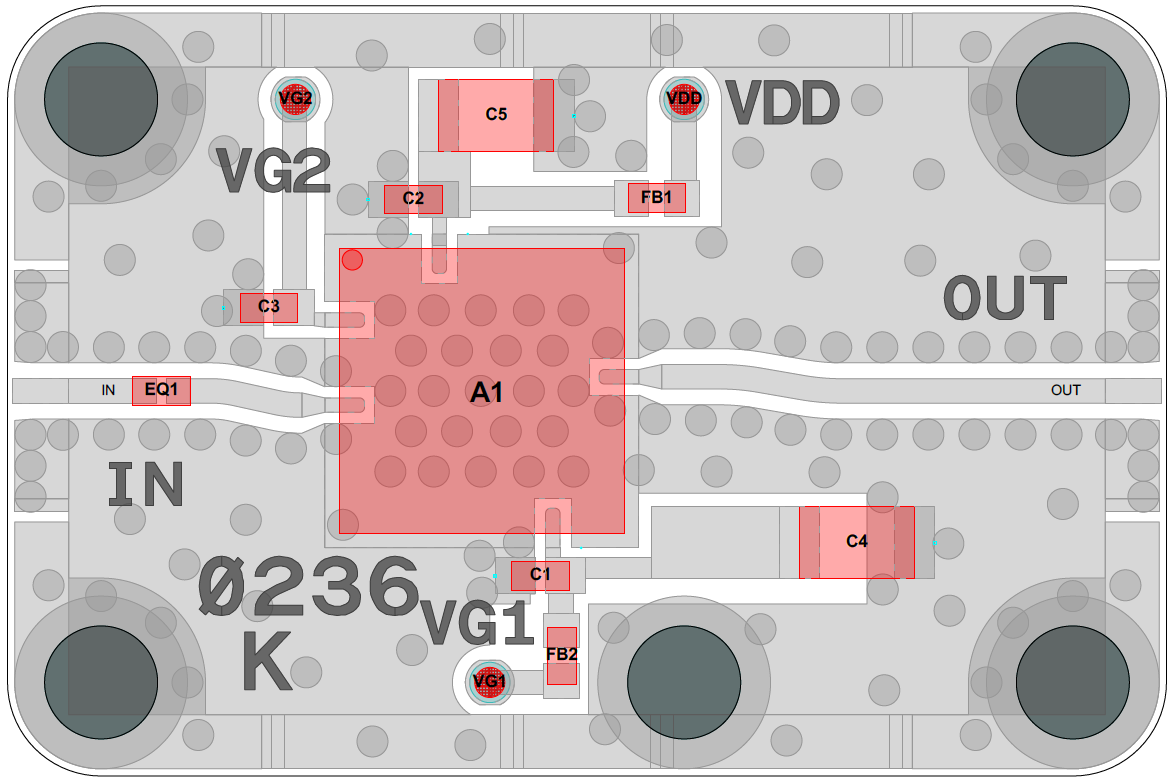

Amplifier, HMC463LP5E [PCB: 0236]
Recommended Bias Controller: XM-A344-0604D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC463LP5E

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 13 dB

NF

 N/A 2.8 dB

P1dB

 N/A 16 dBm

IP3

 N/A 24 dBm

Voltage

 N/A 5 V

Current

 N/A 60 mA

ALL_ASSET

 N/A 1060P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = 5.0V
3. Adjust VG1 more positive until IDQ reaches 60mA
Note: VG1 ~ -0.9V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VDD to 0V
4. Adjust VG1 to 0V

Note: VG2 is left open for self-bias, optional for gain control

Part Number

 N/A XR-A343-0604D
