XM-A342-0804D
XR-A342-0804D ROHS

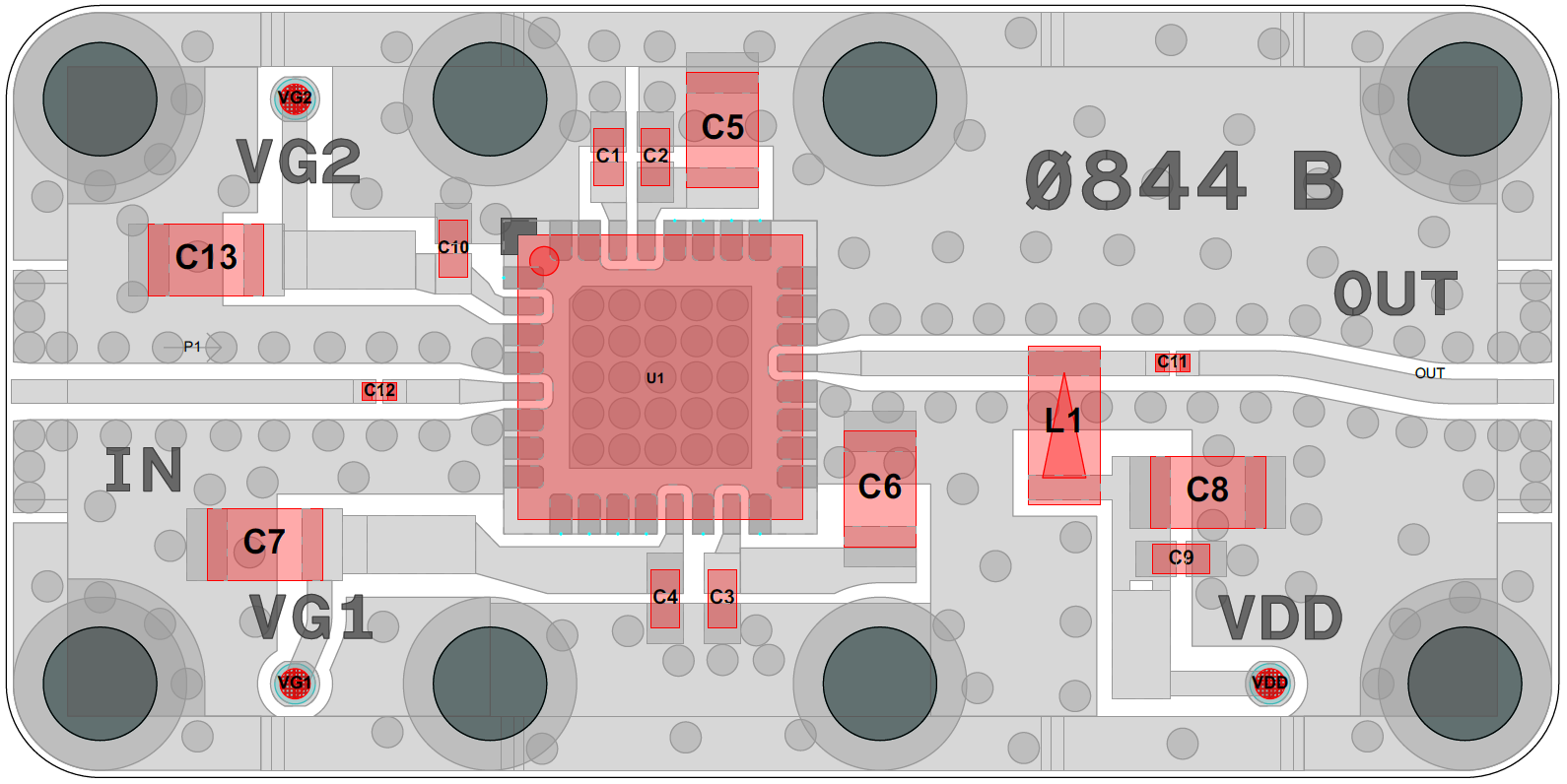

Amplifier, HMC797APM5E [PCB: 0844]
Recommended Bias Controller: XM-A378-0804D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC797APM5E

Low Freq

 N/A 50 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 15 dB

NF

 N/A 3.5 dB

P1dB

 N/A 29 dBm

IP3

 N/A 41 dBm

Voltage

 N/A 10 V

Current

 N/A 400 mA

ALL_ASSET

 N/A 1035M 1036M 1204P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = 10.0V
3. Apply VG2 = +3.5V
4. Adjust VG1 more positive until IDQ reaches 400mA
Note: VG1 ~ -0.55V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-A342-0804D
