XM-A314-0804D
XR-A314-0804D ROHS

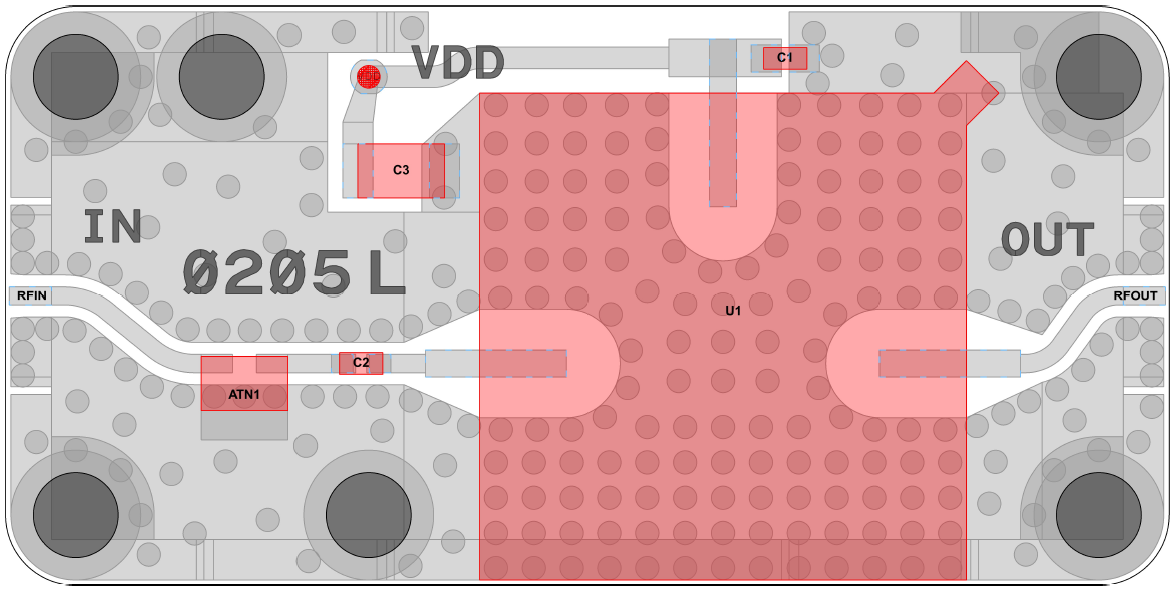

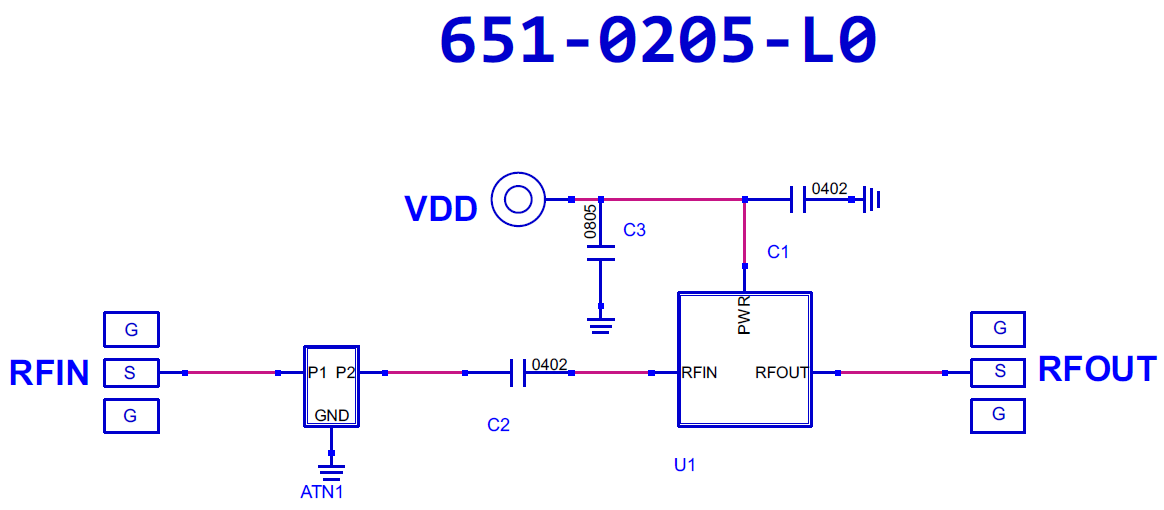

Amplifier, TM6509PM [PCB: 0205]
Recommended Bias Controller: XM-A2J6-0404D-SP

Product Page

 N/A API Spectrum

Spec Sheet

 N/A TM6509PM

Low Freq

 N/A 5 MHz

High Freq

 N/A 500 MHz

Gain

 N/A 14.5 dB

NF

 N/A 4.6 dB

P1dB

 N/A 23 dBm

IP3

 N/A 36 dBm

Voltage

 N/A 15 V

Current

 N/A 95 mA

ALL_ASSET

 N/A 1056P

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 15.0V
Verify IDD ~88mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A314-0804D
