XM-B7D5-0604C
XR-B7D5-0604C ROHS

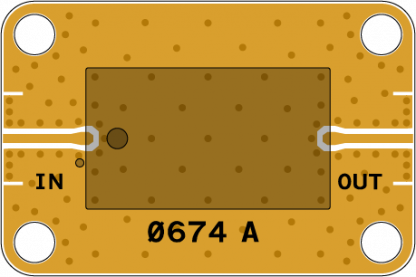

Band Pass Filter, B058MD7S [PCB: 0674]
Connectorized Housing
Connector Series |
N/A SuperSMA |
CF |
N/A 5700 MHz |
IL |
N/A 1.2 dB |
3dB BW |
N/A 1170 MHz |
20 dB Rej Low Side |
N/A 5020 MHz |
20 dB Rej High Side |
N/A 6640 MHz |
40 dB Rej Low Side |
N/A 4685 MHz |
40 dB Rej High Side |
N/A 6950 MHz |
|
N/A |
Part Number |
N/A XR-B7D5-0604C |
