XM-A9H5-0404D
XR-A9H5-0404D ROHS

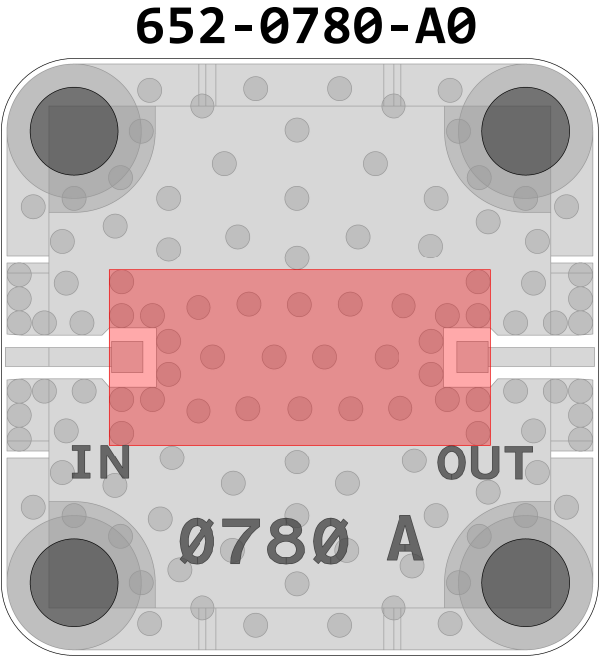

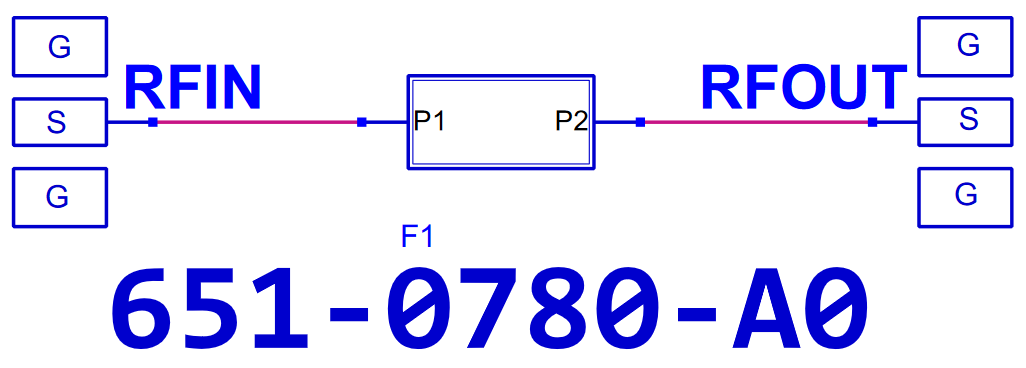

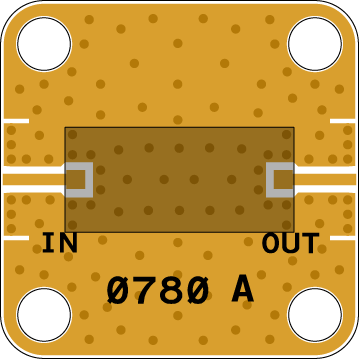

Band Pass Filter, BP0CA0770A700 [PCB: 0780]
Product Page |
N/A AVX |
Spec Sheet |
N/A BP0CA0770A700 |
CF |
N/A 770 MHz |
3dB BW |
N/A 250 MHz |
IL |
N/A 0.97 dB |
20 dB Rej Low Side |
N/A 500 MHz |
20 dB Rej High Side |
N/A 1150 MHz |
40 dB Rej Low Side |
N/A 400 MHz |
40 dB Rej High Side |
N/A 1230 MHz |
|
N/A |
Part Number |
N/A XR-A9H5-0404D |
