XM-A8G5-1004C
XR-A8G5-1004C ROHS

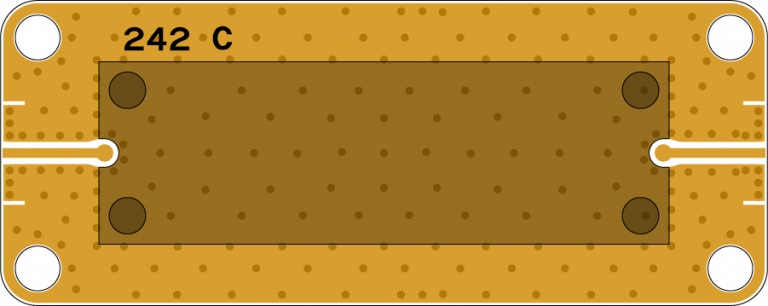

Band Pass Filter, FB-1445SM [PCB: 0242]

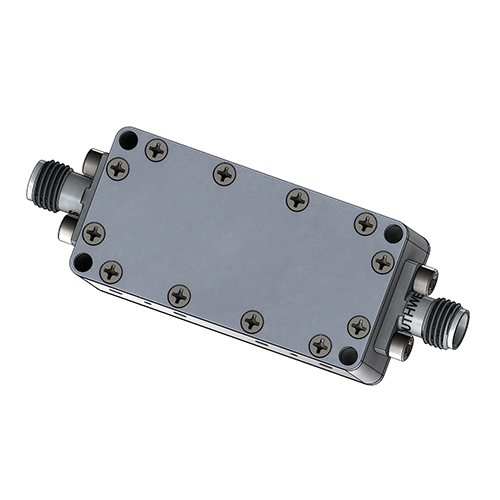

Connectorized Housing
Product Page |
N/A Marki Microwave |
Spec Sheet |
N/A FB-1445SM |
CF |
N/A 14450 MHz |
3dB BW |
N/A 3140 MHz |
IL |
N/A 1.90 dB |
20 dB Rej Low Side |
N/A 11380 MHz |
20 dB Rej High Side |
N/A 16830 MHz |
40 dB Rej Low Side |
N/A 9790 MHz |
40 dB Rej High Side |
N/A 18220 MHz |
Connector Series |
N/A SuperSMA |
|
N/A |
Part Number |
N/A XR-A8G5-1004C |
