Request Information

XM-A7W9-0604D
XR-A7W9-0604D ROHS

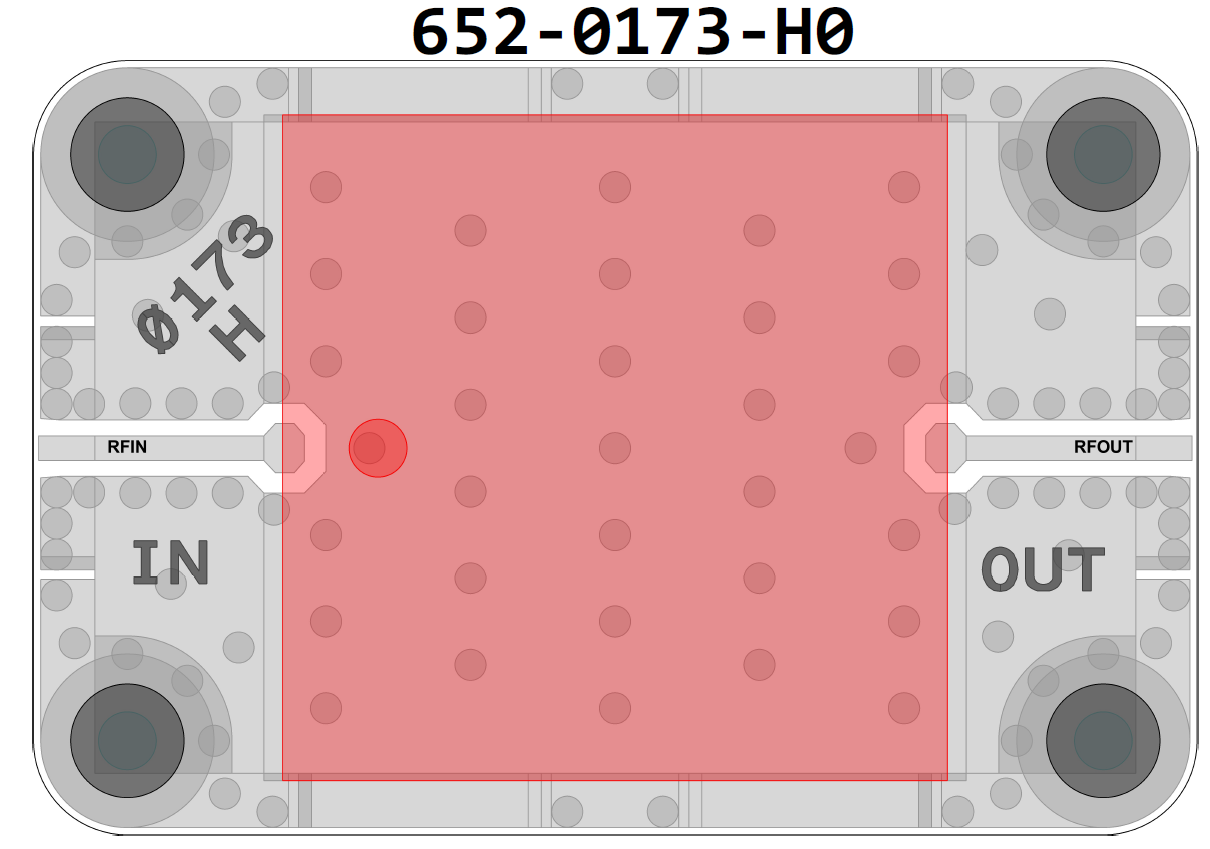

Band Pass Filter, B016MD6S [PCB: 0173]

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B016MD6S

CF

 N/A 1575 MHz

3dB BW

 N/A 231 MHz

IL

 N/A 2.20 dB

20 dB Rej Low Side

 N/A 1380 MHz

20 dB Rej High Side

 N/A 1730 MHz

40 dB Rej Low Side

 N/A 1230 MHz

40 dB Rej High Side

 N/A 1800 MHz

N/A

Part Number

 N/A XR-A7W9-0604D
